DSI - Professional Drainage Solutions

Fire Damper PRODEC-SAN

Fire Damper PRODEC-SAN

Sealing off the ductwork ventilation system

Air Fire Tech website for more information & downloads

Brief information

  • Classification: EI120/EI90
  • Dimensions: DN100

Special features

  • Ideal for renovations
  • Simple assembly

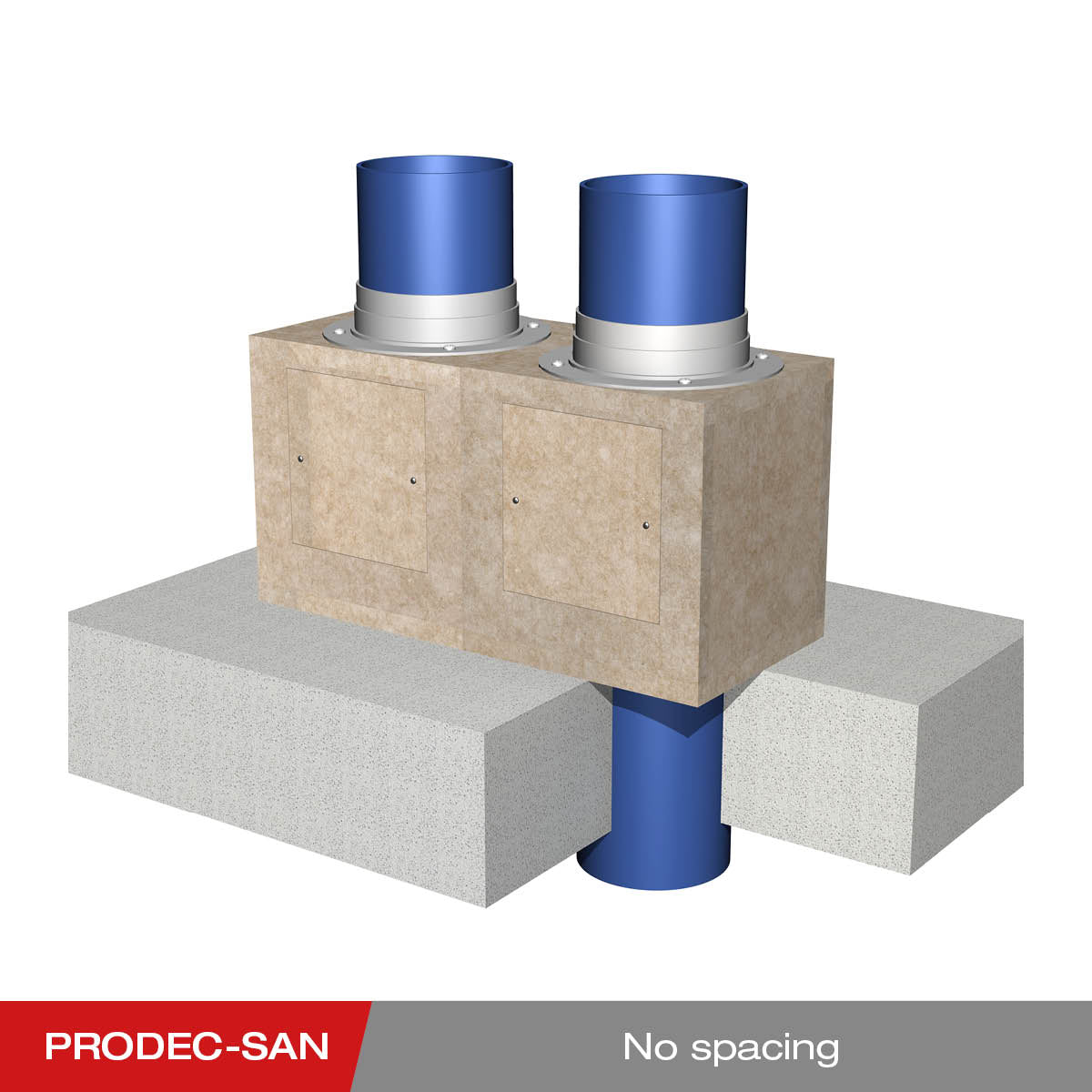

  • Can be used with zero clearance

Product description

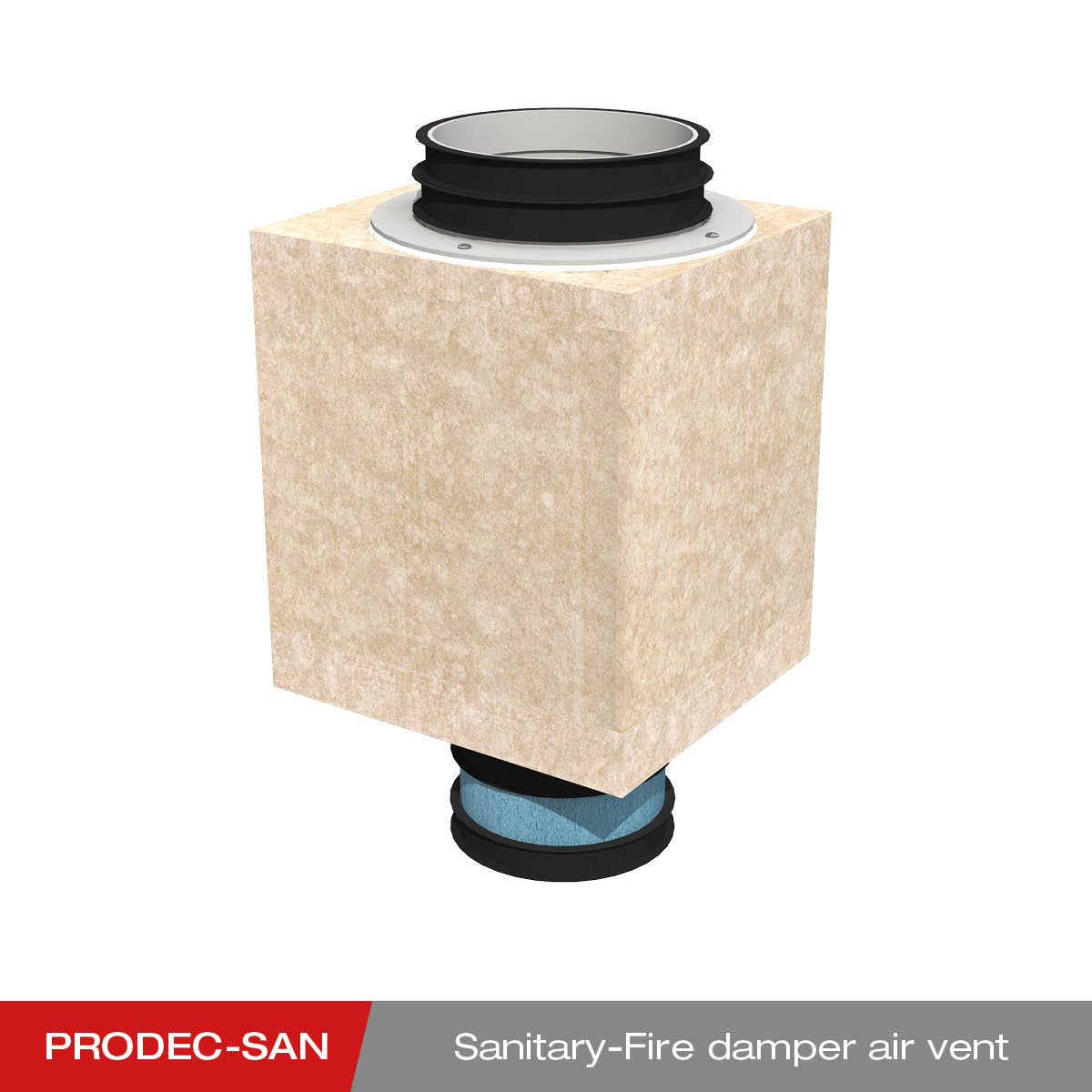

The PRODEC-SAN sanitary ceiling penetration seal for sealing off the sewer line ventilation and venting in PP drainage pipes above the last storey ceiling. The free cross-section ensures a low pressure loss.

It consists of a housing made of gypsum fiberboard with integrated pipe connection pieces. The multi-layer damper blade, which is held in the open position by a thermal release device, is located on the inside of the housing.

Functionality

In the event of a fire, the thermal release device reacts and the damper blades close by means of spring force. The intumescent integrated in the damper blade then expands - the cross-section is closed and heat transfer to the side facing away from the fire is restricted.
