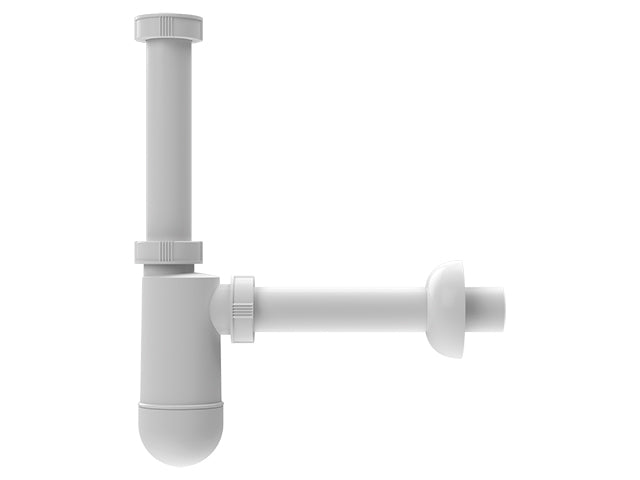

HL132 Washbasin Bottle Trap
HL132 Washbasin Bottle Trap
Surface-mounted polypropylene bottle trap for washbasins with a 1 1/4-inch inlet connection, height-adjustable dip tube and wall rosette. Available with DN32 or DN40 outlet.
Technical specifications
| Application | Washbasin drainage |
|---|---|
| HL product family | HL132/30 / HL132/40 |
| Configuration | Surface-mounted bottle trap with wall rosette |
| Outlet connections | DN32 / DN40 |
| Material | Polypropylene (PP) |
| Key features | Height-adjustable dip tube; 1 1/4-inch basin connection; wall rosette |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / configuration | HL product and technical drawing |
|---|---|---|
| HL132/30 | DN32 | Official HL product page | Technical drawing (PDF) |
| HL132/40 | DN40 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
