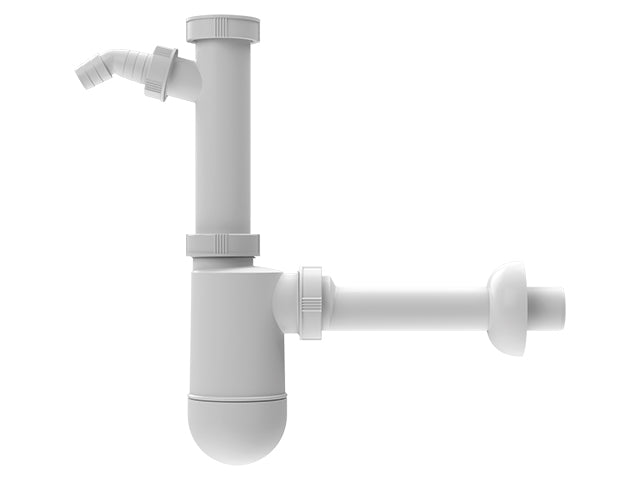

HL132.1 Washbasin Bottle Trap with Appliance Connection
HL132.1 Washbasin Bottle Trap with Appliance Connection
Surface-mounted polypropylene washbasin bottle trap with a 3/4-inch appliance hose connection, non-return valve and wall rosette. Available in DN32 and DN40.
Technical specifications
| Application | Washbasin and appliance drainage |
|---|---|
| HL product family | HL132.1/30 / HL132.1/40 |
| Configuration | Bottle trap with appliance hose connector and non-return valve |
| Outlet connections | DN32 / DN40 |
| Material | Polypropylene (PP) |
| Key features | 3/4-inch appliance hose connection; non-return valve; wall rosette |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / configuration | HL product and technical drawing |
|---|---|---|
| HL132.1/30 | DN32 | Official HL product page | Technical drawing (PDF) |
| HL132.1/40 | DN40 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
