HL134 Concealed Washbasin Trap Assembly with Water Connections
HL134 Concealed Washbasin Trap Assembly with Water Connections

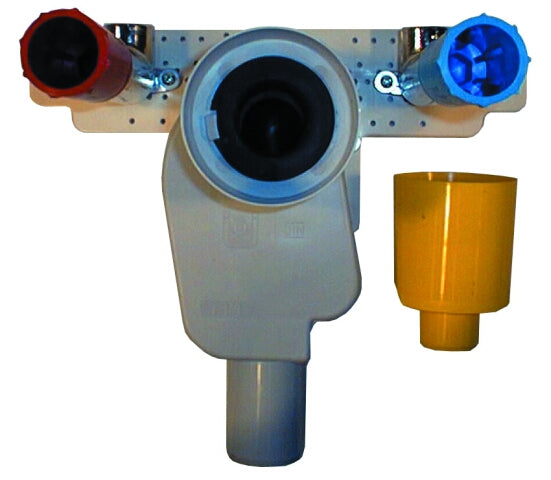

Complete concealed polypropylene washbasin trap assembly with HL134.0 trap body, HL44 mounting plate, two solid-brass water connections and HL42 test plugs. Available in DN40 and DN50.
Technical specifications
| Application | Concealed washbasin drainage with water connections |
|---|---|
| HL product family | HL134/40 / HL134/50 |
| Configuration | Concealed trap assembly with brass water connections |
| Outlet connections | DN40 / DN50 |
| Material | Polypropylene (PP) |
| Key features | HL134.0 trap body; HL44 mounting plate; two brass water connections; HL42 test plugs |
| Rated flow capacity | 0.38 l/s |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / configuration | HL product and technical drawing |
|---|---|---|
| HL134/40 | DN40 | Official HL product page | Technical drawing (PDF) |
| HL134/50 | DN50 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
