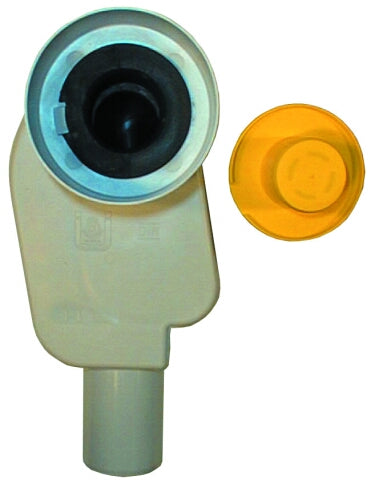

HL134.0 Concealed Washbasin Trap Body
HL134.0 Concealed Washbasin Trap Body
Concealed polypropylene washbasin trap with removable trap insert for DN32 inlet connectors. Available with DN40 or DN50 drainage outlet; designed for integration in wall installations.
Technical specifications
| Application | Concealed washbasin drainage |
|---|---|
| HL product family | HL134.0/40 / HL134.0/50 |
| Configuration | Concealed trap body with removable insert |
| Outlet connections | DN40 / DN50 |
| Material | Polypropylene (PP) |
| Key features | Removable trap insert; compatible with DN32 inlet connector sets |
| Rated flow capacity | 0.38 l/s |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / configuration | HL product and technical drawing |
|---|---|---|
| HL134.0/40 | DN40 | Official HL product page | Technical drawing (PDF) |
| HL134.0/50 | DN50 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
