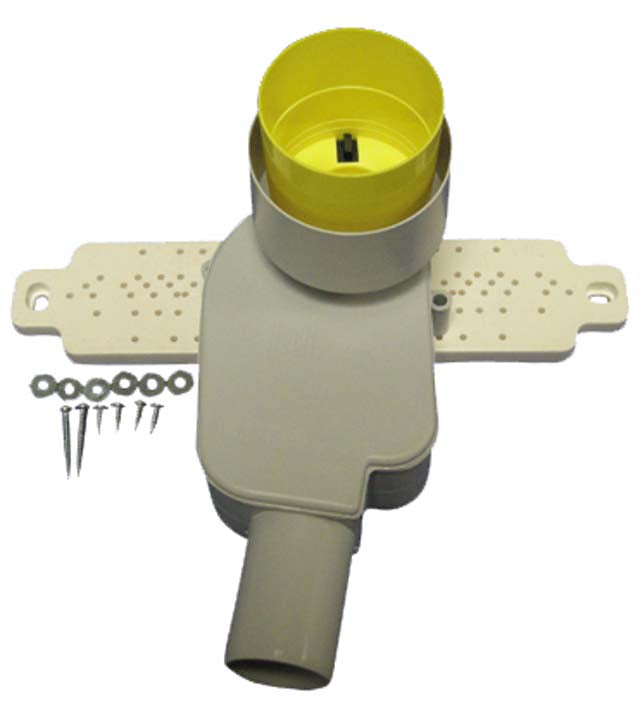

HL134.2 Concealed Washbasin Trap Assembly with Mounting Plate
HL134.2 Concealed Washbasin Trap Assembly with Mounting Plate
Concealed polypropylene washbasin trap assembly comprising the HL134.0 trap body and HL44 mounting plate. Available with DN40 or DN50 outlet.
Technical specifications
| Application | Concealed washbasin drainage |
|---|---|
| HL product family | HL134.2/40 / HL134.2/50 |
| Configuration | Concealed trap assembly with mounting plate |
| Outlet connections | DN40 / DN50 |
| Material | Polypropylene (PP) |
| Key features | HL134.0 trap body; removable insert; HL44 mounting plate |
| Rated flow capacity | 0.38 l/s |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / configuration | HL product and technical drawing |
|---|---|---|
| HL134.2/40 | DN40 | Official HL product page | Technical drawing (PDF) |
| HL134.2/50 | DN50 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
