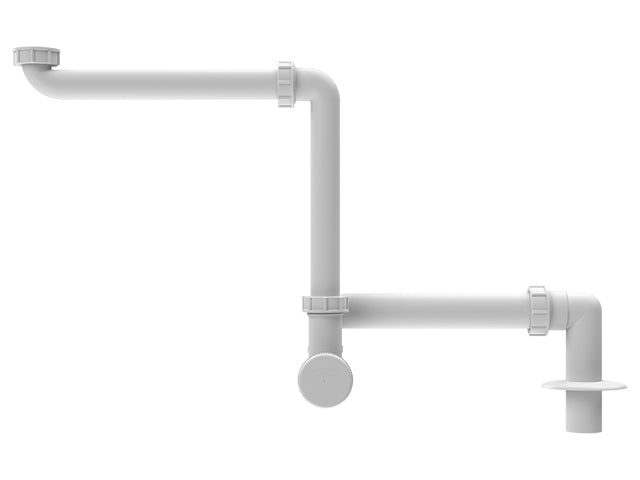

  • HL137N.1/40 — HL137N.1 Space-Saving Washbasin Trap — Vertical Outlet — official HL product photograph
1 1

HL137N.1 Space-Saving Washbasin Trap — Vertical Outlet

HL137N.1 Space-Saving Washbasin Trap — Vertical Outlet

Outlet size

Space-saving polypropylene washbasin trap with vertical outlet, cut-to-length tubes, accessible cleaning insert and wall rosette, designed for use beneath basin furniture.

Technical specifications

Application Space-saving washbasin drainage
HL product family HL137N.1/30 / HL137N.1/40
Configuration Space-saving trap with vertical outlet
Outlet connections DN32 / DN40
Material Polypropylene (PP)
Key features Vertical outlet; cut-to-length tubes; accessible cleaning insert; wall rosette
Manufacturer HL Hutterer & Lechner, Austria

Models and official HL technical drawings

Article code Connection / configuration HL product and technical drawing
HL137N.1/30 DN32 Official HL product page | Technical drawing (PDF)
HL137N.1/40 DN40 Official HL product page | Technical drawing (PDF)

Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
