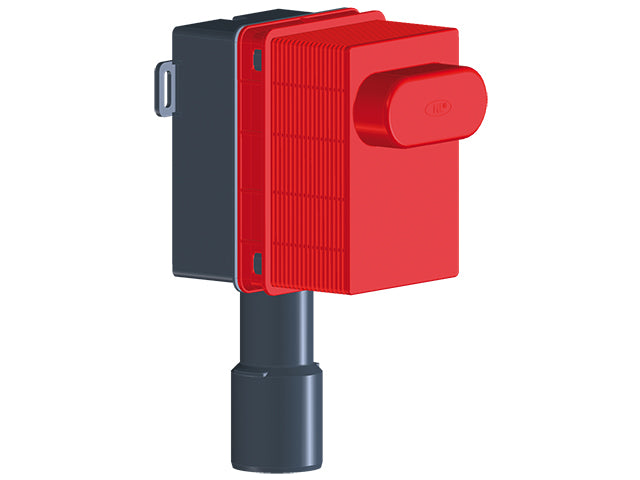

HL4000.0 Concealed Trap Installation Body
HL4000.0 Concealed Trap Installation Body
Pre-assembled concealed polypropylene installation set for wall mounting. The installation body includes fixing brackets, odour barrier, securing screw and trimmable formwork housing and is compatible with HL4000.1, HL4000.2 and HL4000.3 finishing sets.
Technical specifications
| Application | Concealed washbasin or appliance drainage |
|---|---|
| HL product family | HL4000.0 |
| Configuration | Recessed installation body |
| Outlet connections | DN40/50 |
| Material | Polypropylene (PP) |
| Key features | Pre-assembled wall set; fixing brackets; trimmable housing; removable cassette access |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / configuration | HL product and technical drawing |
|---|---|---|
| HL4000.0 | DN40/50 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
