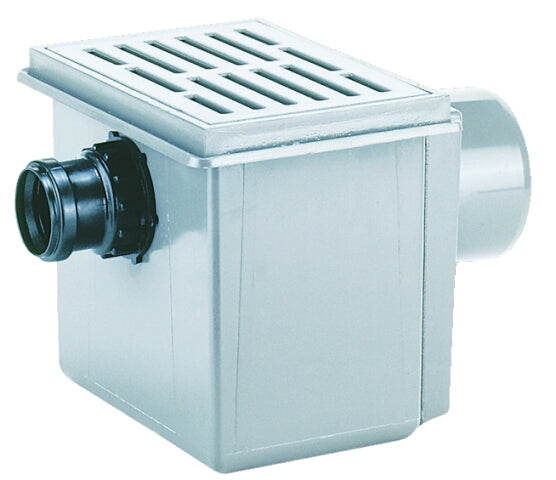

HL71.1 — Basement Drain with Side Inlet
HL71.1 — Basement Drain with Side Inlet
HL71.1 DN110 horizontal basement drain with 155 × 225 mm plastic grate, 60 mm water trap, cleaning access, collecting bucket and selectable DN50 or DN75 side inlet.
Technical specifications
| Application | Basement Drains |
|---|---|
| HL article codes | HL71.1/50, HL71.1/7 |
| Nominal connection | DN50 side inlet, DN75 side inlet |
| Body material | ABS |
| Outlet direction | Horizontal |
| Rated flow | 2.30 l/s |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection / variant | HL specification and drawing |
|---|---|---|
| HL71.1/50 | DN50 side inlet | Official HL product page | Technical drawing (PDF) |
| HL71.1/7 | DN75 side inlet | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
