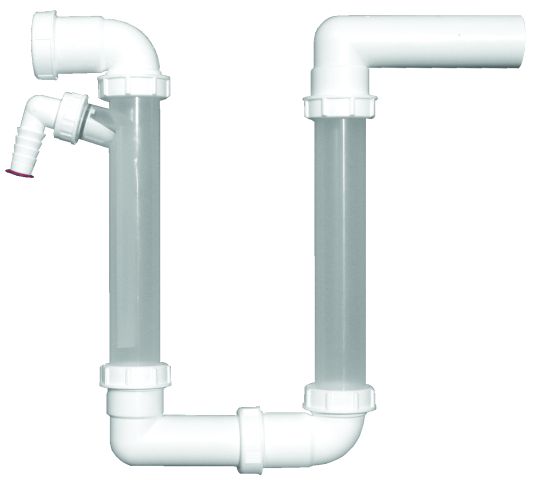

Horizontal Condensate Trap with Transparent Tubes and Refill Connection
Horizontal Condensate Trap with Transparent Tubes and Refill Connection
Horizontal condensate trap for HVAC installations with positive pressure, featuring DN40 inlet and outlet connections. Its transparent dip-tubes support visual inspection, while the ¾-inch refill connection allows replenishment of the water seal.
Technical specifications
| HL article | HL136.2 |
|---|---|
| Application | HVAC – condensate drainage |
| Installation | Surface mounted |
| Material | Polypropylene (PP) |
| Connection | DN40 horizontal inlet and outlet; ¾-inch refill connector |
| Rated flow capacity | Not specified in HL product data |
| Product weight | 364 g |
| Standard / reference | DIN 19541 |
| Features | Transparent dip-tubes; refill facility; water trap |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection | HL specification and drawing |
|---|---|---|
| HL136.2 | DN40 horizontal inlet and outlet; ¾-inch refill connector | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
