Transparent Condensate Siphon with Vertical Inlet for Air Handling Units
Transparent Condensate Siphon with Vertical Inlet for Air Handling Units

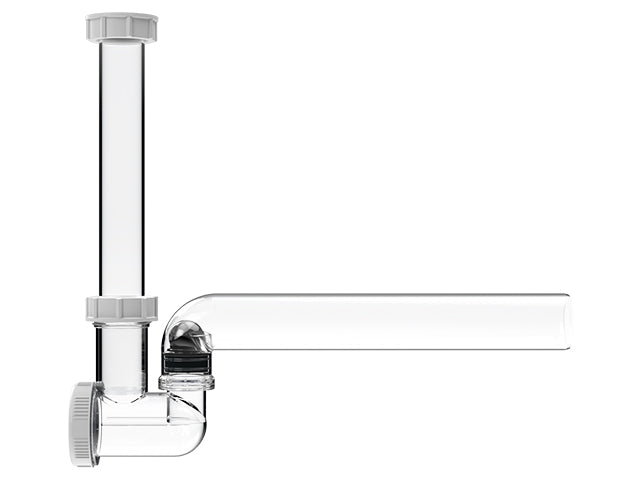

Transparent condensate trap for air handling unit or heat exchanger condensate discharge, with a vertical 1¼-inch inlet and DN40 outlet. It incorporates a water seal, a rising-ball vacuum barrier and a cleaning access point.
Technical specifications
| HL article | HL136T.3 |
|---|---|
| Application | HVAC – condensate drainage |
| Installation | Surface mounted |
| Material | Polypropylene (PP) |
| Connection | DN40 outlet; vertical 1¼-inch inlet |
| Rated flow capacity | 0.37 l/s |
| Product weight | 200 g |
| Standard / reference | DIN 19541; EN 12056 |
| Features | Water trap; rising-ball odour and vacuum barrier; cleaning access; installation height 30–230 mm |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection | HL specification and drawing |
|---|---|---|
| HL136T.3 | DN40 outlet; vertical 1¼-inch inlet | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
