Transparent Air Conditioning Condensate Siphon with Ball Odour Seal

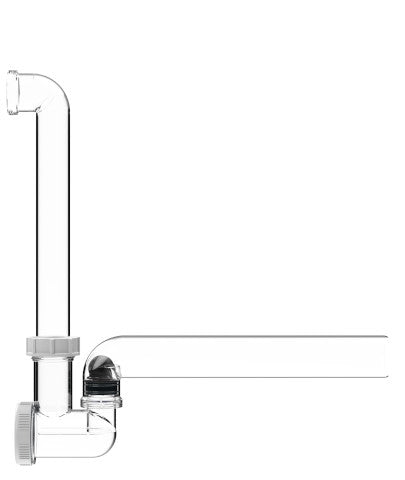

Transparent Air Conditioning Condensate Siphon with Ball Odour Seal
Transparent condensate siphon for negative pressure Air Handling Units or Heat Exchangers condensate drain connections. It accepts a 1¼-inch connection or 12–18 mm hose, with horizontal or vertical inlet positioning, and combines a water trap with a rising-ball odor and vacuum barrier and a cleaning access point.
Technical specifications
| HL article | HL136T |
|---|---|
| Application | HVAC – condensate drainage |
| Installation | Surface mounted |
| Material | Polypropylene (PP) |
| Connection | DN40 outlet; 1¼-inch inlet or 12–18 mm hose |
| Rated flow capacity | 0.37 l/s |
| Product weight | 230 g |
| Standard / reference | DIN 19541; EN 12056 |
| Features | Transparent trap; 60 mm water seal; rising-ball odor and vacuum barrier; cleaning access |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection | HL specification and drawing |
|---|---|---|
| HL136T | DN40 outlet; 1¼-inch inlet or 12–18 mm hose | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
