In-Wall Air Conditioning Condensate Siphon
In-Wall Air Conditioning Condensate Siphon

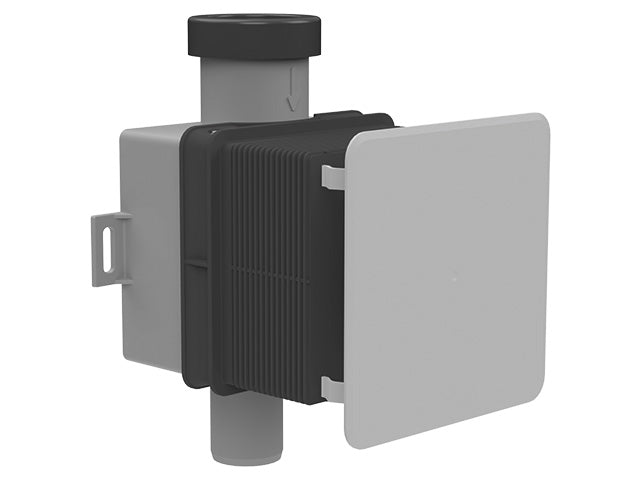

Concealed condensate siphon for connecting air-conditioning condensate drainage to the sewer system. The cleanable, dry-out-resistant trap cartridge and adjustable protective cover allow installation into the wall with access for maintenance.
Technical specifications
| HL article | HL138N |
|---|---|
| Application | Air conditioning and ventilation – condensate drainage |
| Installation | In-wall mounted |
| Material | Polypropylene (PP) and ABS |
| Connection | DN32 outlet; suitable for pipes with 20–32 mm outer diameter (minimum inner diameter 18 mm) |
| Rated flow capacity | 120 l/h |
| Product weight | 266 g |
| Standard / reference | DIN 19541 |
| Features | Cleanable dry-out-resistant cartridge; 120 × 120 mm cover; minimum installation depth 60 mm |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection | HL specification and drawing |
|---|---|---|
| HL138N | DN32 outlet; suitable for pipes with 20–32 mm outer diameter (minimum inner diameter 18 mm) | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
