Hygienic In-Wall Air Conditioning Condensate Siphon
Hygienic In-Wall Air Conditioning Condensate Siphon

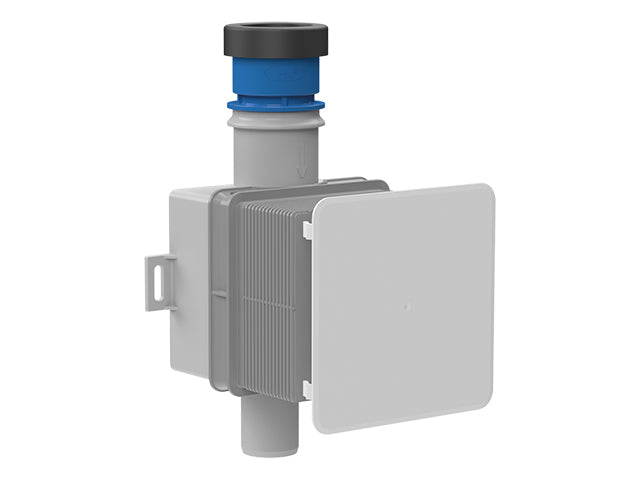

Concealed condensate trap with a hygienic connection adapter for air-conditioning drainage in hygiene-sensitive installations. Its cleanable, dry-out-resistant cartridge and wall cover provide access for maintenance.
Technical specifications
| HL article | HL138NH |
|---|---|
| Application | Air conditioning and ventilation – condensate drainage |
| Installation | In-wall mounted |
| Material | Polypropylene (PP) and ABS |
| Connection | DN32 outlet; suitable for pipes with 20–32 mm outer diameter (minimum inner diameter 18 mm) |
| Rated flow capacity | 72 l/h |
| Product weight | 286 g |
| Standard / reference | DIN 19541; VDI 6022; hygiene adapter described by HL for ÖNORM H 6020 applications |
| Features | Hygienic adapter; cleanable dry-out-resistant cartridge; 120 × 120 mm cover; minimum installation depth 60 mm |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection | HL specification and drawing |
|---|---|---|
| HL138NH | DN32 outlet; suitable for pipes with 20–32 mm outer diameter (minimum inner diameter 18 mm) | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
