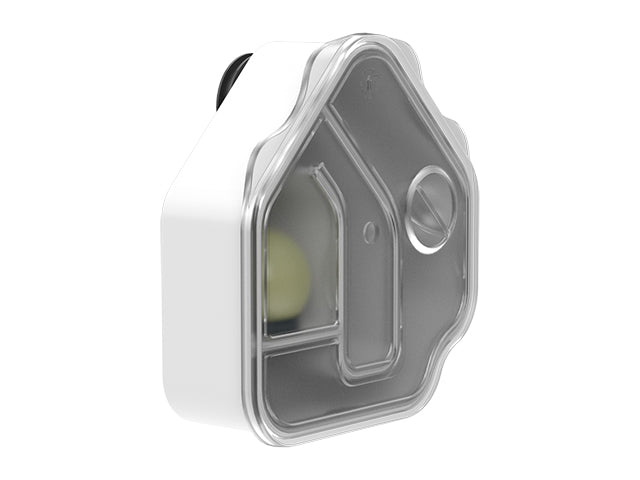

Cartridge for HL138N Siphon
Cartridge for HL138N Siphon
Replacement cartridge for the condensate siphon HL138N. The cartridge can also be used independently by special fitting connection to condensate outlets or pipes (such as inside the cover of a FCU or floor mounted AC), as long as it is placed level vertically and access is possible.
Technical specifications
| HL article | HL0138.3EN |
|---|---|
| Application | Air conditioning and ventilation – condensate drainage |
| Installation | In the body of HL138N, to the condensate outlet of a FCU, or in an accessible pipe |
| Material | Polypropylene (PP) / Elastomer |
| Connection | n/a |
| Rated flow capacity | 120 l/h |
| Product weight | 60 g |
| Standard / reference | n/a |
| Features | Cartridge only; intended for HL138N-series condensate-trap assembly |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection | HL specification and drawing |
|---|---|---|
| HL0138.3EN | DN32 outlet; 100 × 100 mm housing | Official HL product page |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
