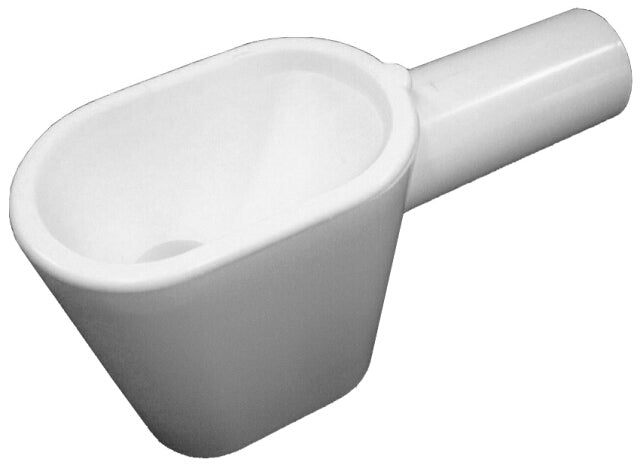

Air Conditioning Condensate Drip Funnel with Trap
Air Conditioning Condensate Drip Funnel with Trap
A compact condensate drip funnel for the controlled discharge of condensate water into a drainage pipe. Its integrated trap provides a water seal and the DN32 outlet enables connection to compatible drainage systems.
Technical specifications
| HL article | HL21 |
|---|---|
| Application | Air conditioning and ventilation – condensate drainage |
| Installation | Surface mounted |
| Material | Polypropylene (PP) |
| Connection | DN32 outlet |
| Rated flow capacity | 0.17 l/s |
| Product weight | 90 g |
| Standard / reference | DIN 19541; EN 1451 |
| Features | Integrated trap seal; drip funnel |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection | HL specification and drawing |
|---|---|---|
| HL21 | DN32 outlet | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
