Vertical Balcony and Terrace Drain with Tilable Frame and Flap Seal
Vertical Balcony and Terrace Drain with Tilable Frame and Flap Seal

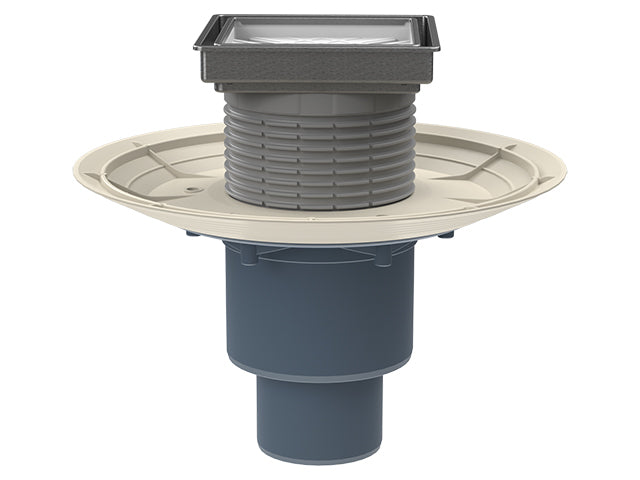

Vertical balcony and terrace drain with waterproofing flange, frost-proof flap seal and tile-insert frame. The extension can be shortened from 10 to 80 mm to match the finished floor build-up.
Technical specifications
- HL model: HL310N.2-3020
- Application: Balcony and terrace drainage
- Outlet orientation: Vertical
- Outlet sizes: DN50 / DN75 / DN110
- Body and component materials: PE; stainless steel
- Waterproofing connection: Flanged
- Grate / cover: Tilable stainless-steel frame 132 × 132 mm; tile insert 112 × 112 mm
- Trap / seal: Frost-proof flap seal
- Flow capacity: 0.85 l/s
- Installation height: 176 mm
- Load class: K3 – 300 kg
- Standard: EN 1253
- Manufacturer: HL Hutterer & Lechner, Austria
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL310N.2-3020 | DN50 / DN75 / DN110 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
