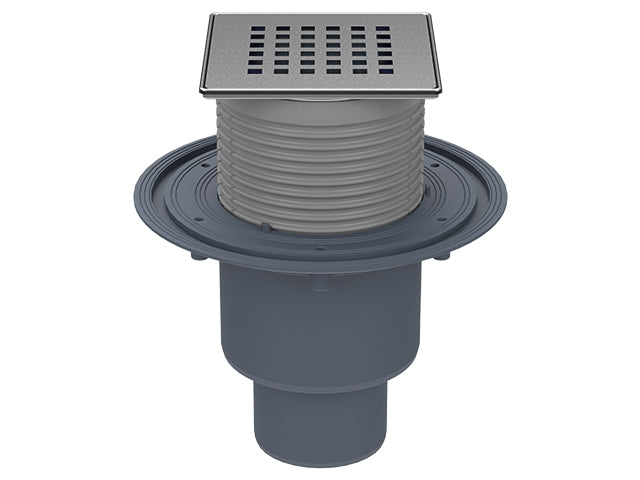

• HL310Prblue-3120 — official HL product photograph

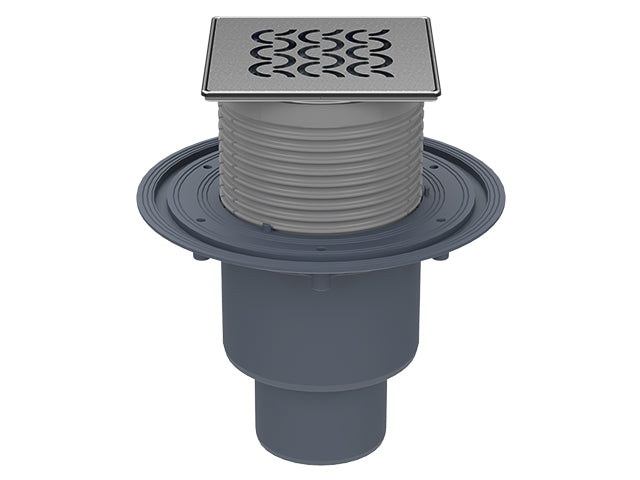

  • HL310Prblue-3121 — official HL product photograph

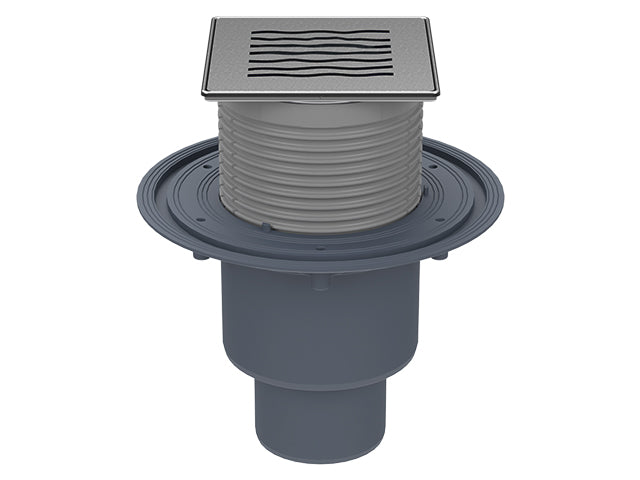

  • HL310Prblue-3123 — official HL product photograph

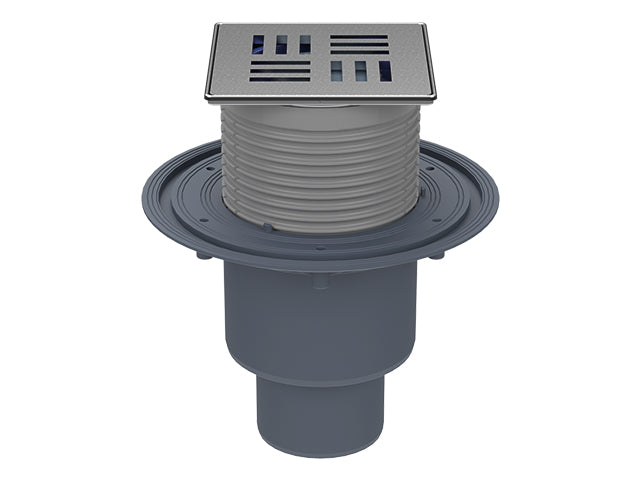

  • HL310Prblue-3124 — official HL product photograph

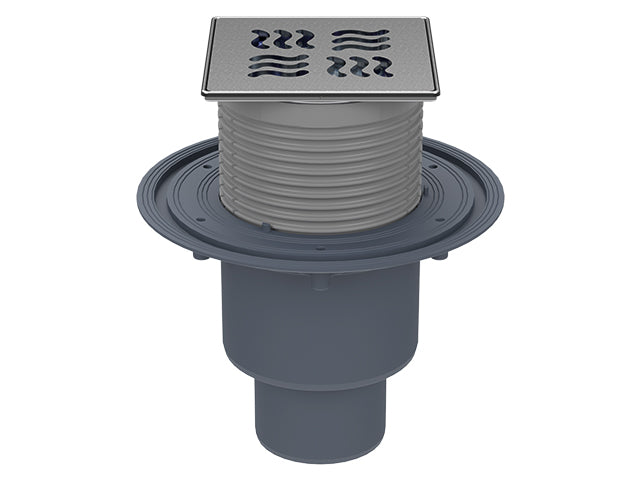

  • HL310Prblue-3125 — official HL product photograph
1 1

Vertical Floor Drain with Primus Blue and Design Grate

Vertical Floor Drain with Primus Blue and Design Grate

Grate Design

Vertical floor drain with Primus Blue odour-trap system, stainless-steel KLICK-KLACK grate and a choice of five decorative grate patterns. The article numbers identify the selected finish.

Technical specifications

Application Sanitary drainage / floor drainage
Installation Vertical
Article code(s) HL310Prblue-3120, HL310Prblue-3121, HL310Prblue-3123, HL310Prblue-3124, HL310Prblue-3125
Drainage connection DN50 / DN75 / DN110
Drain configuration Floor drain
Trap / odour protection Primus Blue odour trap
Grate / finish Choice of five stainless-steel KLICK-KLACK patterns
Waterproofing interface Connection flange / installation interface
Manufacturer HL Hutterer & Lechner, Austria

Models and official HL technical drawings

Article code Connection HL specification and drawing
HL310Prblue-3120 DN50 / DN75 / DN110 Official HL product page | Technical drawing (PDF)
HL310Prblue-3121 DN50 / DN75 / DN110 Official HL product page | Technical drawing (PDF)
HL310Prblue-3123 DN50 / DN75 / DN110 Official HL product page | Technical drawing (PDF)
HL310Prblue-3124 DN50 / DN75 / DN110 Official HL product page | Technical drawing (PDF)
HL310Prblue-3125 DN50 / DN75 / DN110 Official HL product page | Technical drawing (PDF)

Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
