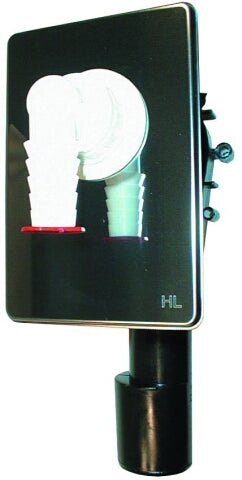

Concealed Washing Machine Trap with Stainless Steel Cover
Concealed Washing Machine Trap with Stainless Steel Cover
Concealed washing appliance trap with 3/4-inch hose connector, cleaning access and a stainless steel cover plate. The installation housing can be trimmed to suit the finished wall.
Technical specifications
| HL article | HL400 |
|---|---|
| Application | Washing appliance drainage |
| Configuration | Without water supply |
| Drainage connection | DN40/50 |
| Material | PE, PP and stainless steel |
| Rated flow capacity | 0.38 l/s |
| Features | 3/4-inch appliance hose connection; stainless steel cover; minimum installation depth 58 mm |
| Product weight | 280 g |
| Standard / reference | DIN 19541 |
| Manufacturer | HL Hutterer & Lechner, Austria |
Official HL documentation
| Article code | HL product | Technical drawing |
|---|---|---|
| HL400 | Official HL product page | Technical drawing (PDF) |
For additional dimensions and available manufacturer documents, refer to the official HL product page linked above.
