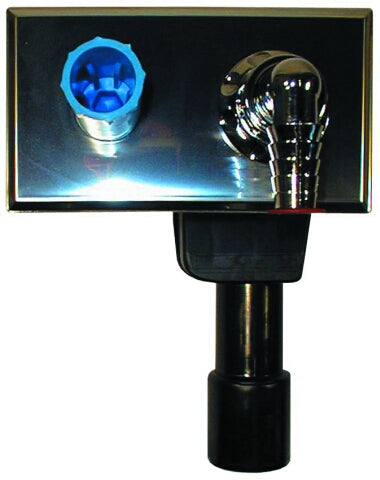

Concealed Washing Machine Trap with Integrated Water Connection
Concealed Washing Machine Trap with Integrated Water Connection
Concealed washing appliance trap with an integrated 1/2-inch water feed, chrome-plated 3/4-inch appliance hose connector, mounting plate and stainless steel cover.
Technical specifications
| HL article | HL405 |
|---|---|
| Application | Washing appliance drainage |
| Configuration | With water supply |
| Drainage connection | DN40/50 |
| Material | PE |
| Rated flow capacity | 0.38 l/s |
| Features | Integrated 1/2-inch water connection; stainless steel cover 180 × 100 mm; minimum installation depth 75 mm |
| Product weight | 730 g |
| Standard / reference | DIN 19541; DIN 1988 |
| Manufacturer | HL Hutterer & Lechner, Austria |
Official HL documentation
| Article code | HL product | Technical drawing |
|---|---|---|
| HL405 | Official HL product page | Technical drawing (PDF) |
For additional dimensions and available manufacturer documents, refer to the official HL product page linked above.
