Concealed Washing Machine Trap Prepared for Water Connection – ECO
Concealed Washing Machine Trap Prepared for Water Connection – ECO

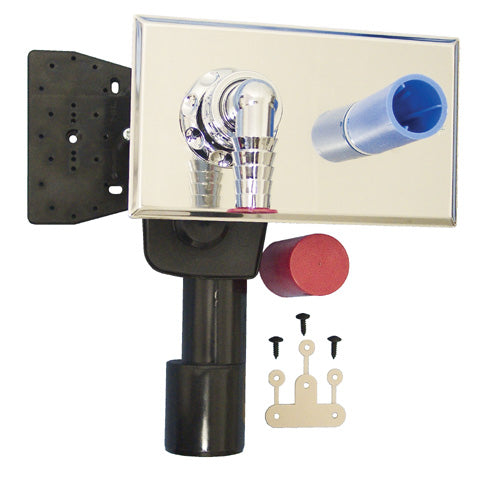

Concealed washing appliance trap with mounting plate prepared for integration of a compatible water feed. Includes a chrome-plated 3/4-inch appliance hose connector and stainless steel finishing cover; the water connection itself is not included.
Technical specifications
| HL article | HL405ECO |
|---|---|
| Application | Washing appliance drainage |
| Configuration | With water supply |
| Drainage connection | DN40/50 |
| Material | PE |
| Rated flow capacity | 0.38 l/s |
| Features | Prepared for water feed; stainless steel cover 180 × 100 mm; minimum installation depth 75 mm |
| Product weight | 443 g |
| Standard / reference | DIN 19541; DIN 1988 |
| Manufacturer | HL Hutterer & Lechner, Austria |
Official HL documentation
| Article code | HL product | Technical drawing |
|---|---|---|
| HL405ECO | Official HL product page | Technical drawing (PDF) |
For additional dimensions and available manufacturer documents, refer to the official HL product page linked above.
