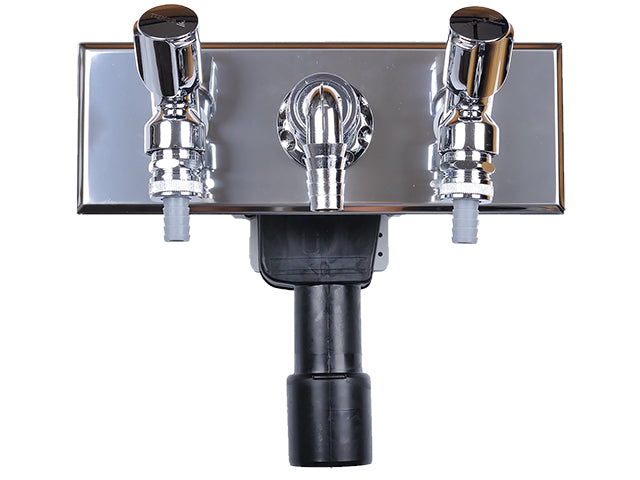

Concealed Washing Machine Trap with Two Water Supply Taps
Concealed Washing Machine Trap with Two Water Supply Taps
Concealed washing appliance trap with two integrated water feed connections and two 1/2-inch shut-off taps. The assembly combines appliance drainage and water distribution behind a 280 × 100 mm stainless steel cover plate.
Technical specifications
| HL article | HL406.2 |
|---|---|
| Application | Washing appliance drainage |
| Configuration | With water supply |
| Drainage connection | DN40/50 |
| Material | PE |
| Rated flow capacity | 0.38 l/s |
| Features | Two water feeds and shut-off taps; stainless steel cover 280 × 100 mm |
| Product weight | 1931 g |
| Standard / reference | DIN 19541; DIN 1988 |
| Manufacturer | HL Hutterer & Lechner, Austria |
Official HL documentation
| Article code | HL product | Technical drawing |
|---|---|---|
| HL406.2 | Official HL product page | Technical drawing (PDF) |
For additional dimensions and available manufacturer documents, refer to the official HL product page linked above.
