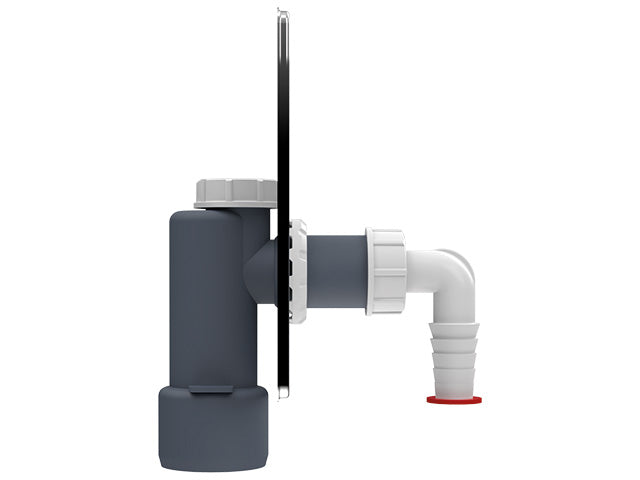

Concealed Washing Machine Trap with Stainless Steel Cover
Concealed Washing Machine Trap with Stainless Steel Cover
Concealed washing appliance drain trap with a 3/4-inch appliance hose connector and stainless steel finishing plate. The compact assembly is supplied with a protective installation cover.
Technical specifications
| HL article | HL440 |
|---|---|
| Application | Washing appliance drainage |
| Configuration | Without water supply |
| Drainage connection | DN40/50 |
| Material | PE and stainless steel |
| Rated flow capacity | 0.33 l/s |
| Features | 3/4-inch hose connector; stainless steel cover 166 × 120 mm |
| Product weight | 200 g |
| Standard / reference | DIN 19541 |
| Manufacturer | HL Hutterer & Lechner, Austria |
Official HL documentation
| Article code | HL product | Technical drawing |
|---|---|---|
| HL440 | Official HL product page | Technical drawing (PDF) |
For additional dimensions and available manufacturer documents, refer to the official HL product page linked above.
