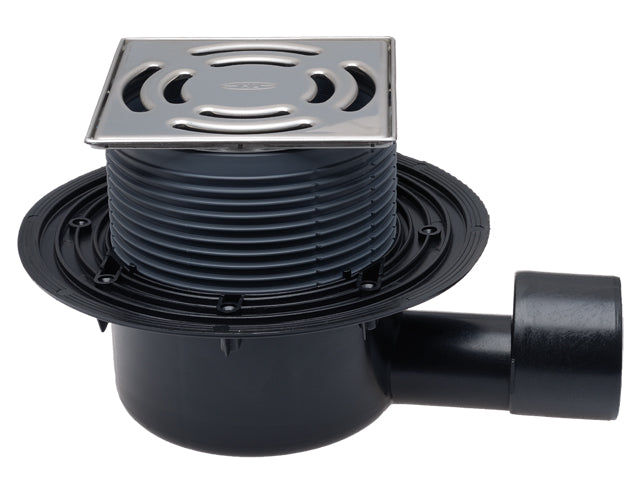

Horizontal Floor Drain with Primus Trap
Horizontal Floor Drain with Primus Trap
Horizontal floor drain for compatible sanitary drainage installations, with DN50 / DN75 connection(s). This HL version features stainless-steel grate and primus odour trap.
Technical specifications
| Application | Sanitary drainage / floor drainage |
|---|---|
| Installation | Horizontal |
| Article code(s) | HL5100Pr |
| Drainage connection | DN50 / DN75 |
| Drain configuration | Floor drain |
| Trap / odour protection | Primus odour trap |
| Grate / finish | Stainless-steel grate |
| Waterproofing interface | Connection flange / installation interface |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection | HL specification and drawing |
|---|---|---|
| HL5100Pr | DN50 / DN75 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
