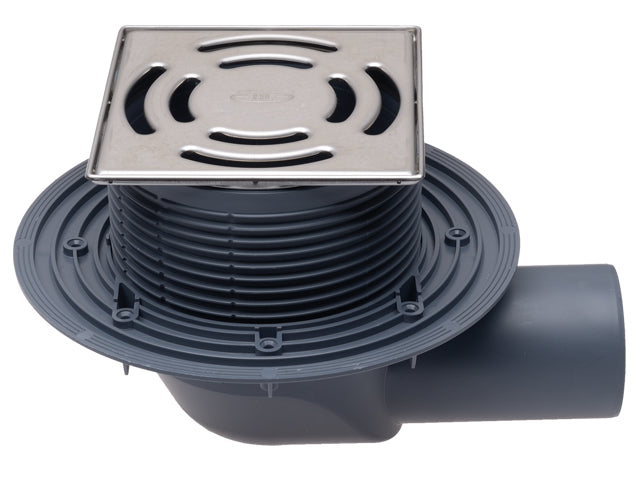

Horizontal Balcony and Terrace Drain with Large Stainless Steel Grate
Horizontal Balcony and Terrace Drain with Large Stainless Steel Grate
High-capacity horizontal balcony and terrace drain with waterproofing flange, frost-proof flap seal and adjustable stainless-steel grate frame (8–80 mm). Supplied with construction cover, support frame and fixing brackets.
Technical specifications
- HL model: HL5100T
- Application: Balcony and terrace drainage
- Outlet orientation: Horizontal
- Outlet sizes: DN75
- Body and component materials: PP; ABS; stainless steel
- Waterproofing connection: Flanged
- Grate / cover: Stainless steel, 138 × 138 mm; frame 145 × 145 mm
- Trap / seal: Frost-proof flap seal
- Flow capacity: 2.50 l/s
- Installation height: 102 mm
- Load class: K3 – 300 kg
- Manufacturer: HL Hutterer & Lechner, Austria
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL5100T | DN75 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
