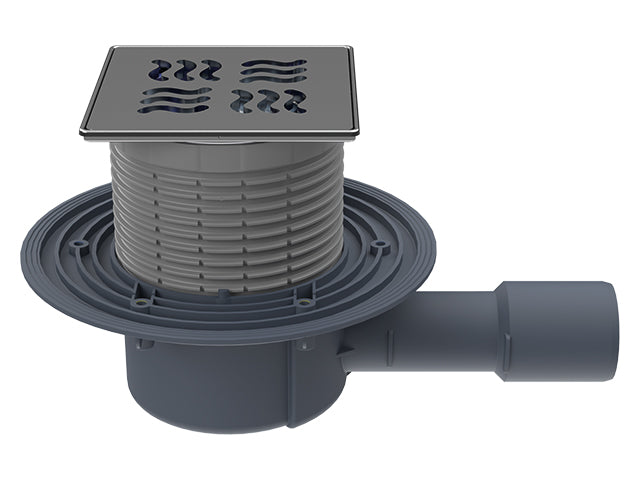

  • HL510N-3125 — official HL product photograph
1 1

Horizontal Floor Drain with Design Grates

Horizontal Floor Drain with Design Grates

Grate Design

Horizontal floor drain with standard odour-trap system, stainless-steel KLICK-KLACK grate and a choice of five decorative grate patterns. The article numbers identify the selected finish.

Technical specifications

Application Sanitary drainage / floor drainage
Installation Horizontal
Article code(s) HL510N-3120, HL510N-3121, HL510N-3123, HL510N-3124, HL510N-3125
Drainage connection DN40 / DN50
Drain configuration Floor drain
Trap / odour protection Conventional trap seal
Grate / finish Choice of five stainless-steel KLICK-KLACK patterns
Waterproofing interface Connection flange / installation interface
Manufacturer HL Hutterer & Lechner, Austria

Models and official HL technical drawings

Article code Connection HL specification and drawing
HL510N-3120 DN40 / DN50 Official HL product page | Technical drawing (PDF)
HL510N-3121 DN40 / DN50 Official HL product page | Technical drawing (PDF)
HL510N-3123 DN40 / DN50 Official HL product page | Technical drawing (PDF)
HL510N-3124 DN40 / DN50 Official HL product page | Technical drawing (PDF)
HL510N-3125 DN40 / DN50 Official HL product page | Technical drawing (PDF)

Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
