Horizontal Floor Drain with Cast-Iron Grate
Horizontal Floor Drain with Cast-Iron Grate

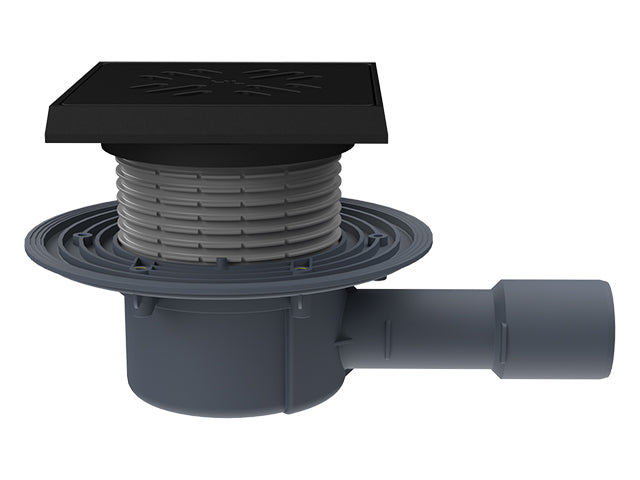

Horizontal floor drain for compatible sanitary drainage installations, with DN40 / DN50 connection(s). This HL version features cast-iron grate and conventional trap seal.
Technical specifications
| Application | Sanitary drainage / floor drainage |
|---|---|
| Installation | Horizontal |
| Article code(s) | HL510NG |
| Drainage connection | DN40 / DN50 |
| Drain configuration | Floor drain |
| Trap / odour protection | Conventional trap seal |
| Grate / finish | Cast-iron grate |
| Waterproofing interface | Connection flange / installation interface |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection | HL specification and drawing |
|---|---|---|
| HL510NG | DN40 / DN50 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
