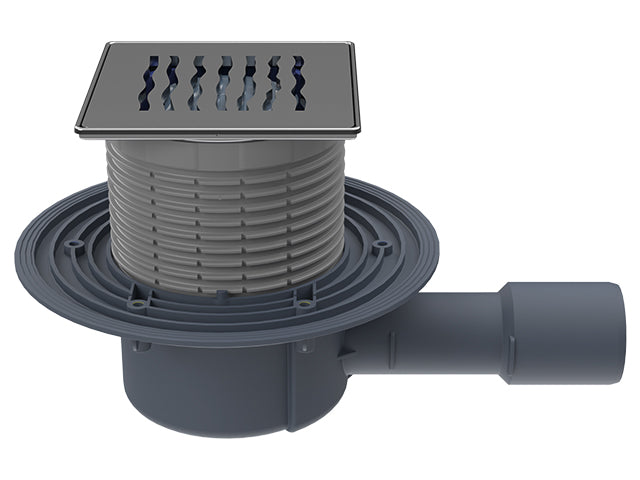

  • HL510Prblue-3123 — official HL product photograph

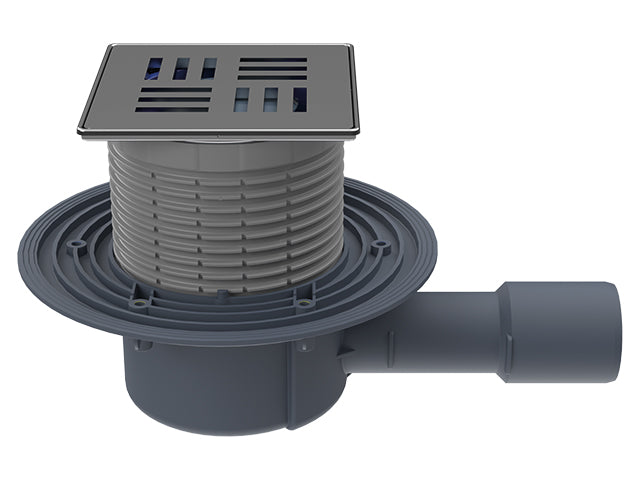

  • HL510Prblue-3124 — official HL product photograph
  • HL510Prblue-3125 — official HL product photograph
1 1

Horizontal Floor Drain with Primus Blue and Design Grate

Horizontal Floor Drain with Primus Blue and Design Grate

Grate Design

Horizontal floor drain with Primus Blue odour-trap system, stainless-steel KLICK-KLACK grate and a choice of five decorative grate patterns. The article numbers identify the selected finish.

Technical specifications

Application Sanitary drainage / floor drainage
Installation Horizontal
Article code(s) HL510Prblue-3120, HL510Prblue-3121, HL510Prblue-3123, HL510Prblue-3124, HL510Prblue-3125
Drainage connection DN40 / DN50
Drain configuration Floor drain
Trap / odour protection Primus Blue odour trap
Grate / finish Choice of five stainless-steel KLICK-KLACK patterns
Waterproofing interface Connection flange / installation interface
Manufacturer HL Hutterer & Lechner, Austria

Models and official HL technical drawings

Article code Connection HL specification and drawing
HL510Prblue-3120 DN40 / DN50 Official HL product page | Technical drawing (PDF)
HL510Prblue-3121 DN40 / DN50 Official HL product page | Technical drawing (PDF)
HL510Prblue-3123 DN40 / DN50 Official HL product page | Technical drawing (PDF)
HL510Prblue-3124 DN40 / DN50 Official HL product page | Technical drawing (PDF)
HL510Prblue-3125 DN40 / DN50 Official HL product page | Technical drawing (PDF)

Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
