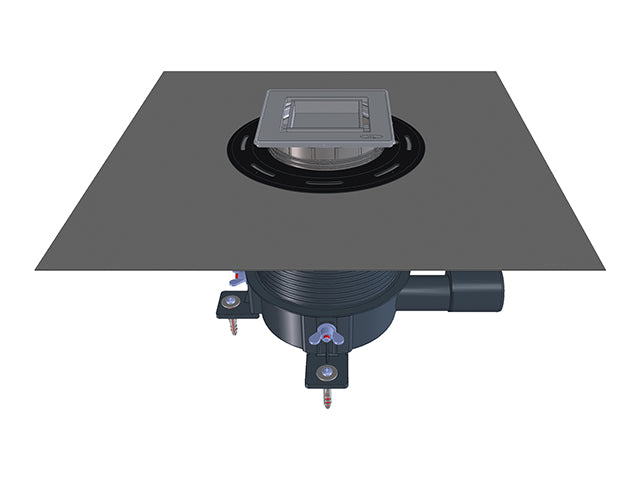

Horizontal Shower Drain with Tileable Finish
Horizontal Shower Drain with Tileable Finish
Low-profile horizontal shower drainage component in the HL Primus Blue family, supplied with tile-insert / tileable finish. Refer to the HL installation documentation for the compatible waterproofing and completion components.
Technical specifications
| Application | Sanitary drainage / floor drainage |
|---|---|
| Installation | Horizontal |
| Article code(s) | HL541i |
| Drainage connection | DN40 / DN50 |
| Drain configuration | Shower drain |
| Trap / odour protection | Primus Blue odour trap |
| Grate / finish | Tile-insert / tileable finish |
| Waterproofing interface | Connection flange / installation interface |
| Rated flow capacity | 0.45 l/s |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Connection | HL specification and drawing |
|---|---|---|
| HL541i | DN40 / DN50 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
