HL605.1K Magnum Horizontal Drain Body without Flange
HL605.1K Magnum Horizontal Drain Body without Flange

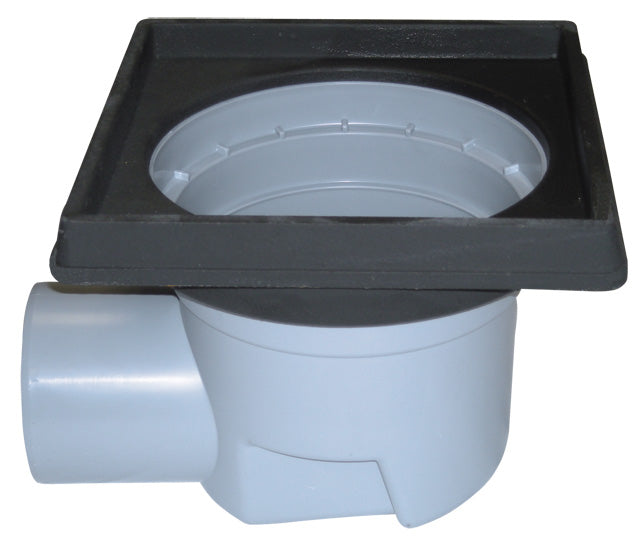

HL605.1K is a polypropylene (PP) DN110 horizontal Magnum / Perfekt drain body without an integrated waterproofing flange. It has a cast-iron frame for use with separately selected grating and sealing components.
Technical specifications
| Application | Floor and surface drainage |
|---|---|
| HL article code | HL605.1K |
| Drain outlet | Horizontal DN110 |
| Waterproofing connection | Without flange |
| Frame | Cast-iron frame 260 × 260 mm |
| Grate | Not included — drain body only |
| Odour seal | Not included — drain body only |
| Body material | Polypropylene (PP) |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Outlet connection | HL specification and drawing |
|---|---|---|
| HL605.1K | DN110 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
