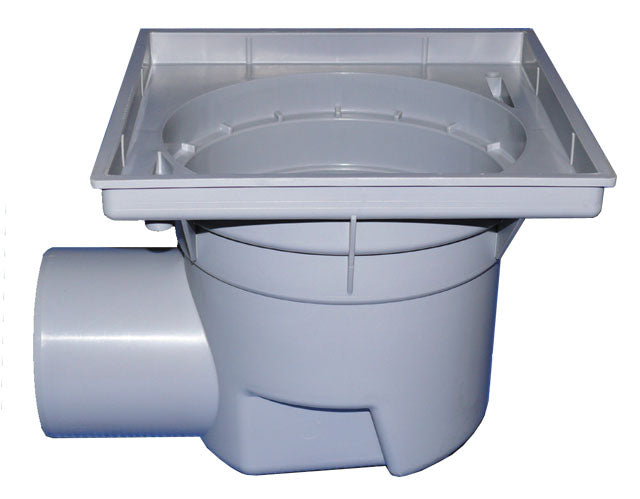

HL605K Magnum Horizontal Drain Body without Flange
HL605K Magnum Horizontal Drain Body without Flange
HL605K is a polypropylene (PP) DN110 horizontal Magnum / Perfekt drain body without an integrated waterproofing flange. Grate and trap components are selected separately to suit the installation.
Technical specifications
| Application | Floor and surface drainage |
|---|---|
| HL article code | HL605K |
| Drain outlet | Horizontal DN110 |
| Waterproofing connection | Without flange |
| Frame | Plastic frame 244 × 244 mm |
| Grate | Not included — drain body only |
| Odour seal | Not included — drain body only |
| Body material | Polypropylene (PP) |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Outlet connection | HL specification and drawing |
|---|---|---|
| HL605K | DN110 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
