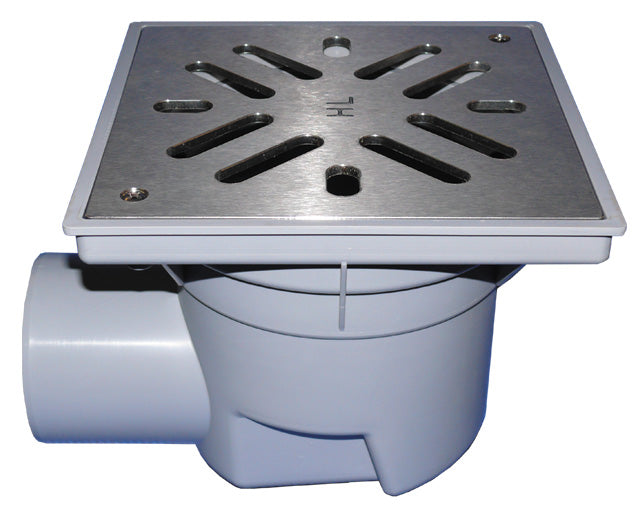

HL605SW Magnum Horizontal Drain without Flange — Stainless-Steel Grate
HL605SW Magnum Horizontal Drain without Flange — Stainless-Steel Grate
HL605SW is a DN110 horizontal Magnum / Perfekt drain with a stainless steel grate and a water trap seal. Its polypropylene (PP) body features a design without an integrated waterproofing flange. The finished grate measures 226 × 226 mm.
Technical specifications
| Application | Floor and surface drainage |
|---|---|
| HL article code | HL605SW |
| Drain outlet | Horizontal DN110 |
| Waterproofing connection | Without flange |
| Frame | Plastic frame 244 × 244 mm |
| Grate | Stainless steel 226 × 226 mm |
| Odour seal | Water trap seal |
| Body material | Polypropylene (PP) |
| Rated flow capacity | 2.5 l/s |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Outlet connection | HL specification and drawing |
|---|---|---|
| HL605SW | DN110 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
