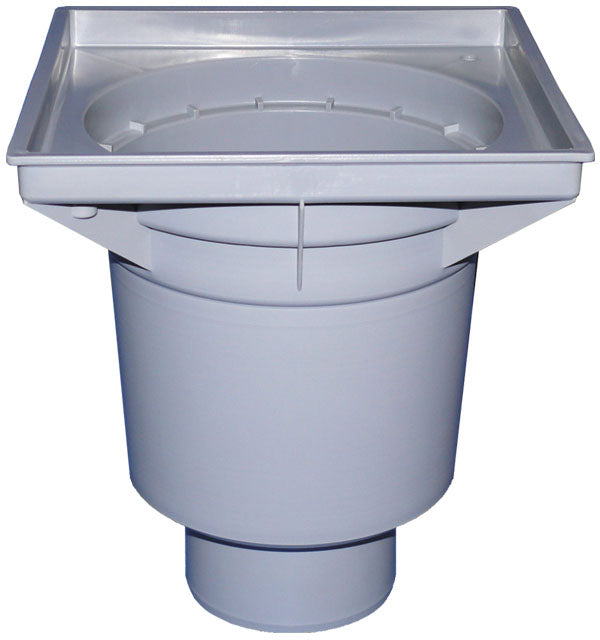

HL606K Magnum Vertical Drain Body
HL606K Magnum Vertical Drain Body
HL606K is a vertical HL Magnum / Perfekt drain body in polypropylene (PP) for completing with a compatible grating and trap insert.
Technical specifications
| Application | Floor and surface drainage |
|---|---|
| HL product family | HL606K |
| Drain outlet | Vertical, DN110 or DN160 |
| Flange | Without flange |
| Frame | Plastic frame 244 × 244 mm |
| Grate | Grate not included |
| Odour seal | Not supplied (drain body) |
| Body material | Polypropylene (PP) |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Outlet connection | HL specification and drawing |
|---|---|---|
| HL606K/1 | DN110 | Official HL product page | Technical drawing (PDF) |
| HL606K/5 | DN160 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
