HL606W Magnum Vertical Drain — Cast-Iron Grate
HL606W Magnum Vertical Drain — Cast-Iron Grate

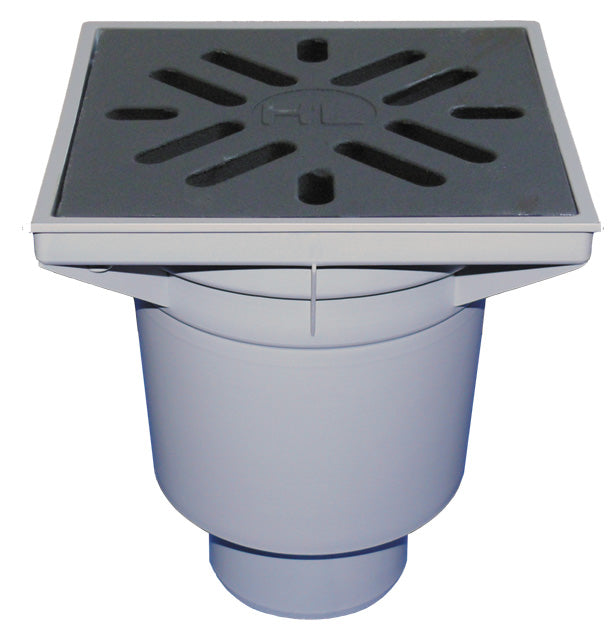

HL606W is a vertical HL Magnum / Perfekt drain with without flange, a cast iron 226 × 226 mm and a trap seal. The polypropylene (PP) body is available with DN110 or DN160 vertical outlet connections. The grating measures 226 × 226 mm.
Technical specifications
| Application | Floor and surface drainage |
|---|---|
| HL product family | HL606W |
| Drain outlet | Vertical, DN110 or DN160 |
| Flange | Without flange |
| Frame | Plastic frame 244 × 244 mm |
| Grate | Cast iron 226 × 226 mm |
| Odour seal | Trap seal |
| Body material | Polypropylene (PP) |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Outlet connection | HL specification and drawing |
|---|---|---|
| HL606W/1 | DN110 | Official HL product page | Technical drawing (PDF) |
| HL606W/5 | DN160 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
