HL615.1 Magnum Horizontal Drain with Flange — Cast-Iron Grate
HL615.1 Magnum Horizontal Drain with Flange — Cast-Iron Grate

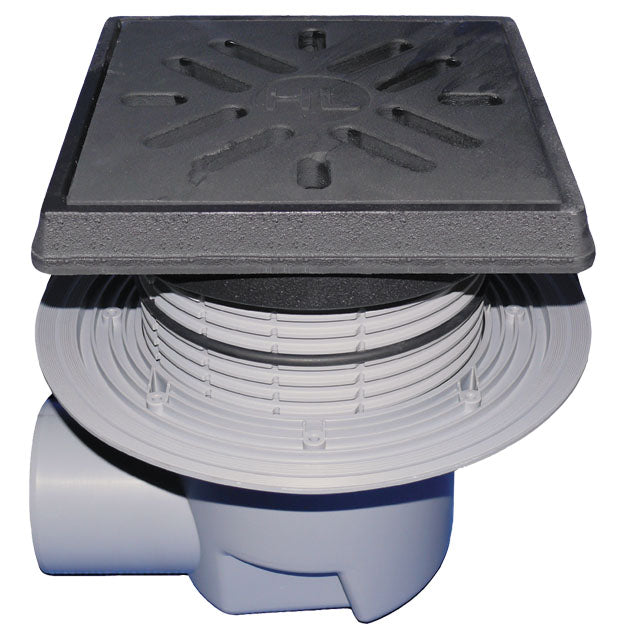

HL615.1 is a DN110 horizontal Magnum / Perfekt drain with a cast iron grate and a frost- and drought-proof flap seal. Its polypropylene (PP) body features an integrated flange for connecting the waterproofing layer. The finished grate measures 226 × 226 mm.
Technical specifications
| Application | Floor and surface drainage |
|---|---|
| HL article code | HL615.1 |
| Drain outlet | Horizontal DN110 |
| Waterproofing connection | Integrated waterproofing flange |
| Frame | Cast-iron frame 260 × 260 mm |
| Grate | Cast iron 226 × 226 mm |
| Odour seal | Frost- and drought-proof flap |
| Body material | Polypropylene (PP) |
| Rated flow capacity | 4.2 l/s |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Outlet connection | HL specification and drawing |
|---|---|---|
| HL615.1 | DN110 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
