HL615L Magnum Horizontal Drain with Flange — Plastic Grate
HL615L Magnum Horizontal Drain with Flange — Plastic Grate

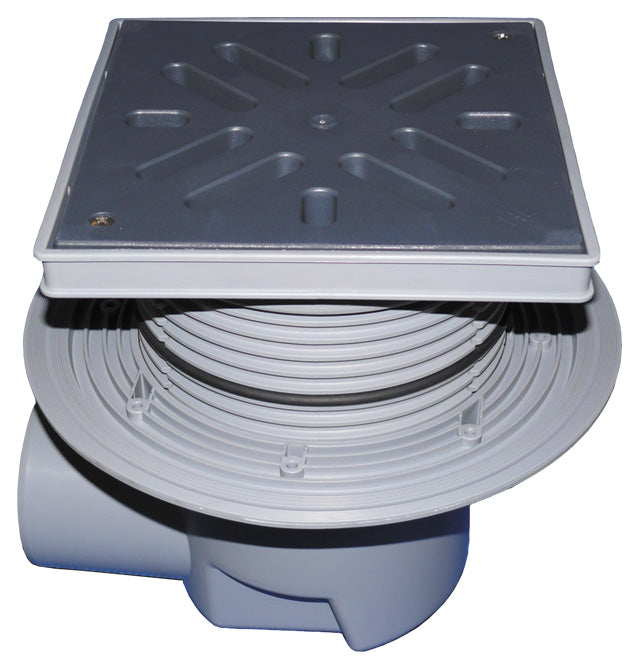

HL615L is a DN110 horizontal Magnum / Perfekt drain with a plastic grate and a frost- and drought-proof flap seal. Its polypropylene (PP) body features an integrated flange for connecting the waterproofing layer. The finished grate measures 226 × 226 mm.
Technical specifications
| Application | Floor and surface drainage |
|---|---|
| HL article code | HL615L |
| Drain outlet | Horizontal DN110 |
| Waterproofing connection | Integrated waterproofing flange |
| Frame | Plastic frame 240 × 240 mm |
| Grate | Plastic 226 × 226 mm |
| Odour seal | Frost- and drought-proof flap |
| Body material | Polypropylene (PP) |
| Rated flow capacity | 4.2 l/s |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Outlet connection | HL specification and drawing |
|---|---|---|
| HL615L | DN110 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
