HL616L Magnum Vertical Drain with Flange — Plastic Grate
HL616L Magnum Vertical Drain with Flange — Plastic Grate

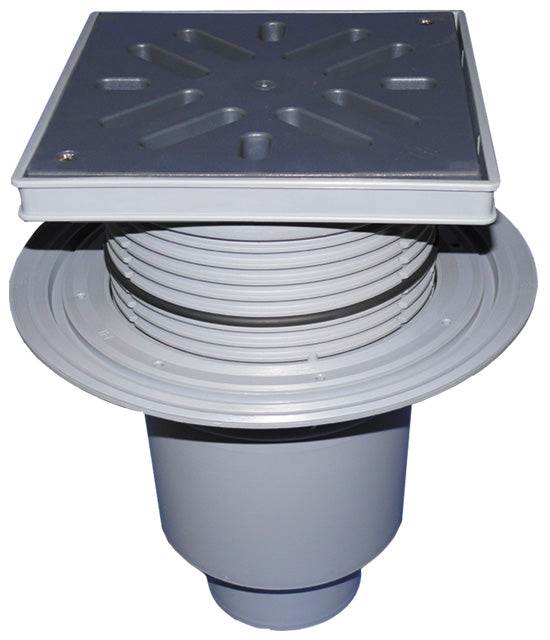

HL616L is a vertical HL Magnum / Perfekt drain with with flange, a plastic 226 × 226 mm and a frost- and drought-proof flap. The polypropylene (PP) body is available with DN110 or DN160 vertical outlet connections. The integrated flange provides a waterproofing connection. The grating measures 226 × 226 mm.
Technical specifications
| Application | Floor and surface drainage |
|---|---|
| HL product family | HL616L |
| Drain outlet | Vertical, DN110 or DN160 |
| Flange | Integrated waterproofing flange |
| Frame | Plastic frame 240 × 240 mm |
| Grate | Plastic 226 × 226 mm |
| Odour seal | Frost- and drought-proof flap |
| Body material | Polypropylene (PP) |
| Manufacturer | HL Hutterer & Lechner, Austria |
Models and official HL technical drawings
| Article code | Outlet connection | HL specification and drawing |
|---|---|---|
| HL616L/1 | DN110 | Official HL product page | Technical drawing (PDF) |
| HL616L/5 | DN160 | Official HL product page | Technical drawing (PDF) |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
