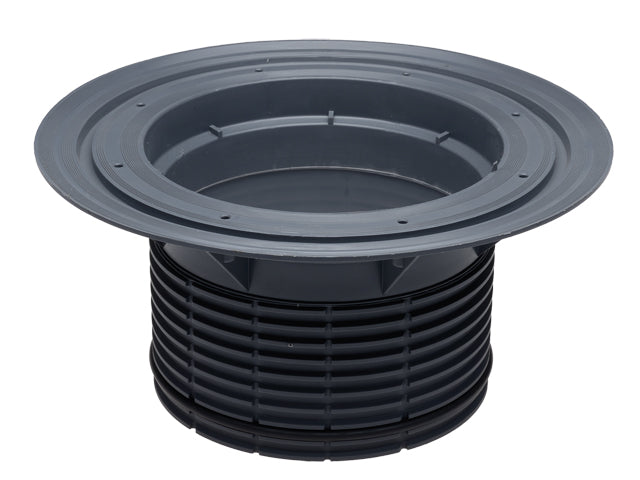

• HL618 — Flanged extension — HL official product photograph

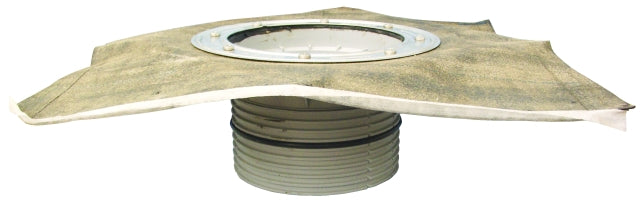

  • HL618H — Bitumen membrane Ø500 mm — HL official product photograph
1 1

HL618 DN195 Drain Extensions

HL618 DN195 Drain Extensions

Configuration

HL618 extensions provide standard and bitumen membrane choices for compatible Ø195 mm drain bodies.

Technical specifications

Application Drain / outlet extension
HL product family HL618
Available article codes HL618, HL618H
Available configurations Flanged extension; Bitumen membrane Ø500 mm
Variant selection Select a configuration to choose the corresponding HL article number
Manufacturer HL Hutterer & Lechner, Austria

Models and official HL technical drawings

Article code Configuration / dimensions HL specification and drawing
HL618 Flanged extension — Ø195 mm; 130 mm; Material: PP; Weight: 510 g Official HL product page | Technical drawing (PDF)
HL618H Bitumen membrane Ø500 mm — Ø195 mm / Ø500 mm membrane; 130 mm; Material: PP, bitumen membrane; Weight: 1750 g Official HL product page | Technical drawing (PDF)

For exact dimensions and manufacturer documentation, refer to the linked HL product pages and technical drawings.
