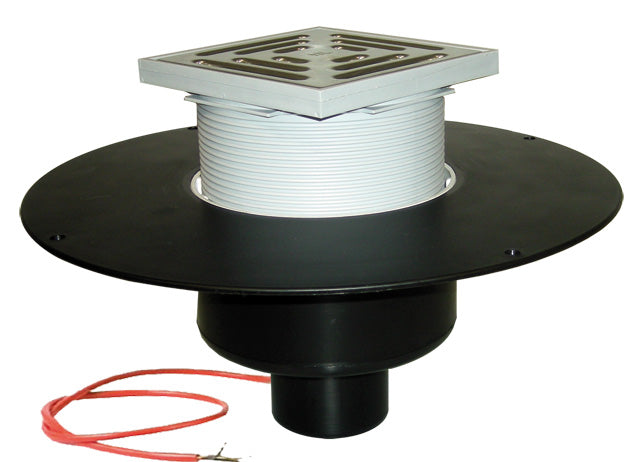

Vertical Roof Drain with PP Flange – Heated & Walkable

Vertical Roof Drain with PP Flange – Heated & Walkable is designed for gravity drainage of flat roofs, with a vertical outlet and PP flange for connection to compatible FPO roof membranes based on polypropylene. Features an insulated drain body. Integrated self-regulating heating element, 10–30 W at 230 V. Walkable version with stainless steel grate and an adjustable square grate frame.

Technical specifications

• Drainage system: Gravity drainage
• Outlet orientation: Vertical
• Available outlets: DN110, DN125, DN75
• Waterproofing connection: PP Flange
• Electric heating: Self-regulating, 10–30 W / 230 V
• Walkable grate: Stainless steel, 137 × 137 mm; load class K3 (300 kg), where specified by HL

Models and official HL technical drawings

Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
