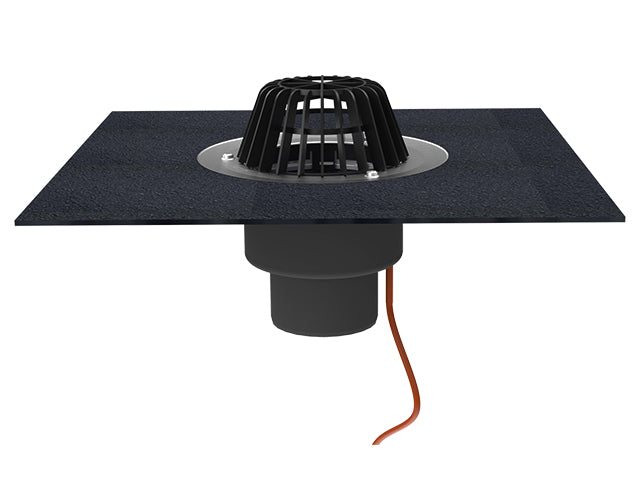

Vertical Roof Drain with Bitumen Membrane – Heated
Vertical Roof Drain with Bitumen Membrane – Heated
Vertical Roof Drain with Bitumen Membrane – Heated is designed for gravity drainage of flat roofs, with a vertical outlet and factory-attached bitumen membrane for connection to bituminous roof waterproofing. Features an insulated drain body. Integrated self-regulating heating element, 10–30 W at 230 V. Supplied with a leaf strainer or grate and a construction protection cover.
Technical specifications
- Drainage system: Gravity drainage
- Outlet orientation: Vertical
- Available outlets: DN110, DN125, DN160, DN75
- Waterproofing connection: Bitumen Membrane
- Electric heating: Self-regulating, 10–30 W / 230 V
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL62.1H/1 | DN110 | Official specs & drawing downloads | Technical drawing PDF |
| HL62.1H/2 | DN125 | Official specs & drawing downloads |
| HL62.1H/5 | DN160 | Official specs & drawing downloads |
| HL62.1H/7 | DN75 | Official specs & drawing downloads |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
