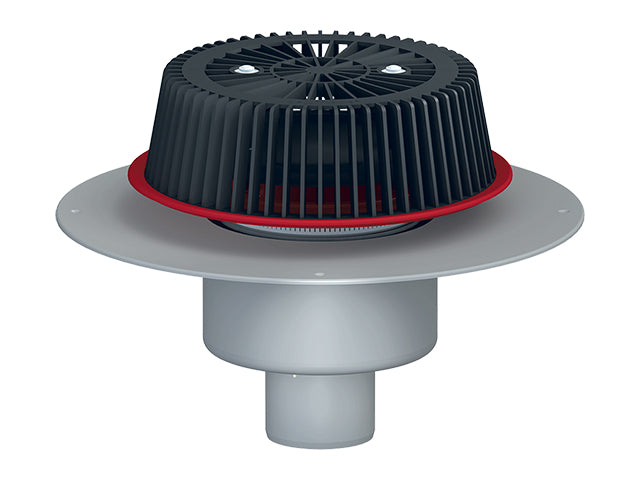

Vertical Emergency Roof Drain with PVC Collar – Heated
Vertical Emergency Roof Drain with PVC Collar – Heated
Vertical Emergency Roof Drain with PVC Collar – Heated is intended for secondary emergency drainage of flat roofs. Its vertical outlet, insulated polypropylene (PP) body and height-adjustable overflow inlet allow controlled discharge when emergency drainage is required. The drain incorporates a PVC waterproofing flange / collar.
This model includes an electric heating element for frost-sensitive applications.
Technical specifications
- HL model: HL62.1PSafe
- Application: Emergency roof drainage
- Outlet orientation: vertical
- Outlet sizes: DN110, DN125, DN160, DN75
- Body material: Polypropylene (PP)
- Waterproofing connection: PVC waterproofing flange / collar
- Installation height: 100 mm
- Inlet edge: Height-adjustable
- Leaf catcher: Dome strainer, approximately 262 mm diameter
- Inlet edge adjustment: 28–68 mm
- Heating: Electric heating element
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL62.1PSafe/1 | DN110 | Official specs & drawing downloads | Technical drawing PDF |
| HL62.1PSafe/2 | DN125 | Official specs & drawing downloads |
| HL62.1PSafe/5 | DN160 | Official specs & drawing downloads |
| HL62.1PSafe/7 | DN75 | Official specs & drawing downloads |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
