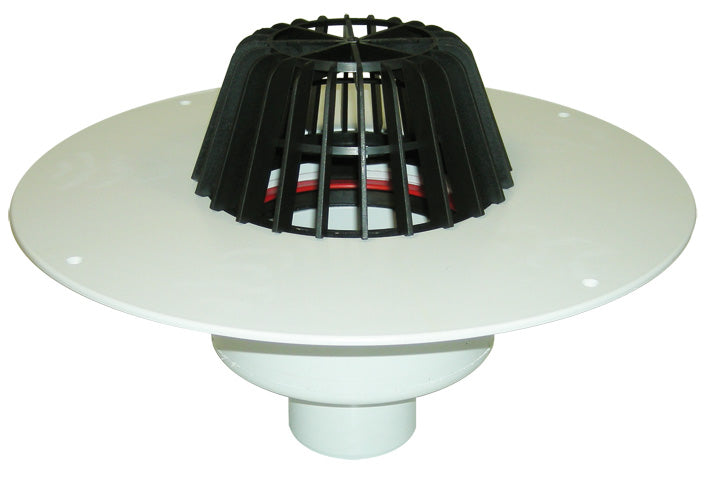

Vertical Roof Drain with PVC Collar
Vertical Roof Drain with PVC Collar
Vertical Roof Drain with PVC Collar is designed for gravity drainage of flat roofs, with a vertical outlet and PVC flange/collar for direct welding to compatible PVC roof membranes. Features an insulated drain body. Supplied with a leaf strainer or grate and a construction protection cover.
Technical specifications
- Drainage system: Gravity drainage
- Outlet orientation: Vertical
- Available outlets: DN110, DN125, DN160, DN75
- Waterproofing connection: PVC Collar
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL62P/1 | DN110 | Official specs & drawing downloads | Technical drawing PDF |
| HL62P/2 | DN125 | Official specs & drawing downloads |
| HL62P/5 | DN160 | Official specs & drawing downloads |
| HL62P/7 | DN75 | Official specs & drawing downloads |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
