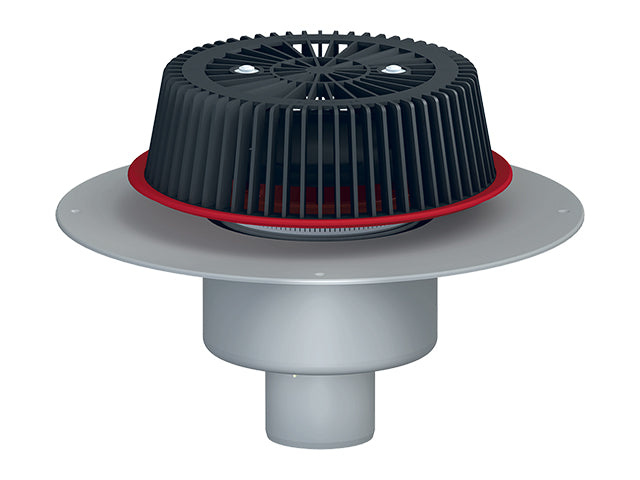

Vertical Emergency Roof Drain with PVC Collar
Vertical Emergency Roof Drain with PVC Collar
Vertical Emergency Roof Drain with PVC Collar is intended for secondary emergency drainage of flat roofs. Its vertical outlet, insulated polypropylene (PP) body and height-adjustable overflow inlet allow controlled discharge when emergency drainage is required. The drain incorporates a PVC waterproofing flange / collar.
Technical specifications
- HL model: HL62PSafe
- Application: Emergency roof drainage
- Outlet orientation: vertical
- Outlet sizes: DN110, DN125, DN160, DN75
- Body material: Polypropylene (PP)
- Waterproofing connection: PVC waterproofing flange / collar
- Installation height: 100 mm
- Inlet edge: Height-adjustable
- Leaf catcher: Dome strainer, approximately 262 mm diameter
- Inlet edge adjustment: 28–68 mm
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL62PSafe/1 | DN110 | Official specs & drawing downloads | Technical drawing PDF |
| HL62PSafe/2 | DN125 | Official specs & drawing downloads |
| HL62PSafe/5 | DN160 | Official specs & drawing downloads |
| HL62PSafe/7 | DN75 | Official specs & drawing downloads |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
