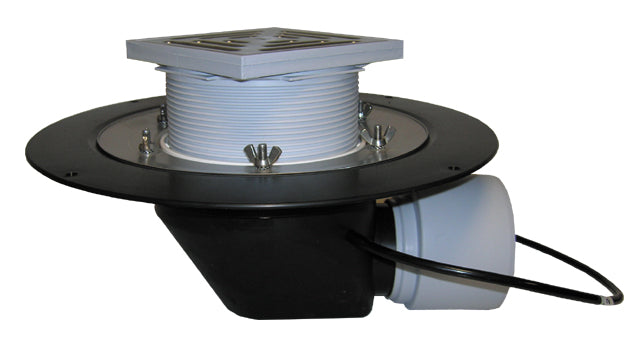

Horizontal Roof Drain with Stainless Steel Clamping Ring – Heated & Walkable
Horizontal Roof Drain with Stainless Steel Clamping Ring – Heated & Walkable
Horizontal Roof Drain with Stainless Steel Clamping Ring – Heated & Walkable is designed for gravity drainage of flat roofs, with a horizontal outlet and flange with a stainless steel clamping ring for securing compatible waterproofing membranes. Features an insulated drain body. Integrated self-regulating heating element, 10–30 W at 230 V. Walkable version with stainless steel grate and an adjustable square grate frame.
Technical specifications
- Drainage system: Gravity drainage
- Outlet orientation: Horizontal
- Available outlets: DN75/DN110
- Waterproofing connection: Stainless Steel Clamping Ring
- Manufacturer: HL Hutterer & Lechner, Austria
- Electric heating: Self-regulating, 10–30 W / 230 V
- Walkable grate: Stainless steel, 137 × 137 mm; load class K3 (300 kg), where specified by HL
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL64.1B | DN75/DN110 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
