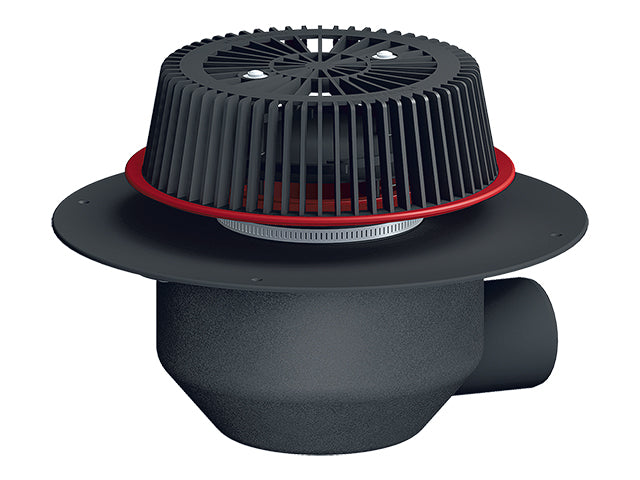

Horizontal Emergency Roof Drain with PP Collar – Heated
Horizontal Emergency Roof Drain with PP Collar – Heated
Horizontal Emergency Roof Drain with PP Collar – Heated is intended for secondary emergency drainage of flat roofs. Its horizontal outlet, insulated polypropylene (PP) body and height-adjustable overflow inlet allow controlled discharge when emergency drainage is required. The drain incorporates a polypropylene (PP) waterproofing flange / collar.
This model includes an electric heating element for frost-sensitive applications.
Technical specifications
- HL model: HL64.1FSafe
- Application: Emergency roof drainage
- Outlet orientation: horizontal
- Outlet sizes: DN110, DN75
- Body material: Polypropylene (PP)
- Waterproofing connection: polypropylene (PP) waterproofing flange / collar
- Installation height: 150 mm
- Inlet edge: Height-adjustable
- Leaf catcher: Dome strainer, approximately 262 mm diameter
- Inlet edge adjustment: 28–68 mm
- Heating: Electric heating element
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL64.1FSafe/1 | DN110 | Official specs & drawing downloads | Technical drawing PDF |
| HL64.1FSafe/7 | DN75 | Official specs & drawing downloads |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
