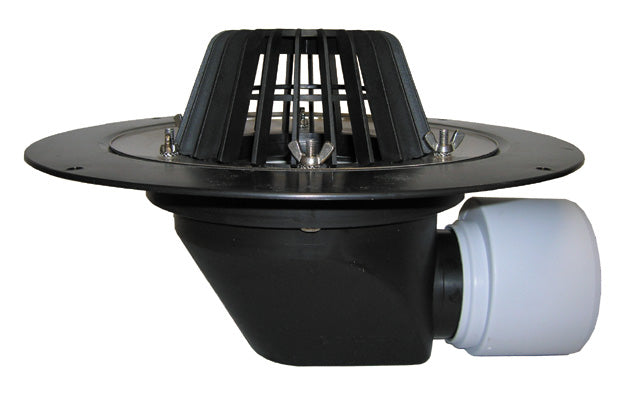

Horizontal Roof Drain with Stainless Steel Clamping Ring
Horizontal Roof Drain with Stainless Steel Clamping Ring
Horizontal Roof Drain with Stainless Steel Clamping Ring is designed for gravity drainage of flat roofs, with a horizontal outlet and flange with a stainless steel clamping ring for securing compatible waterproofing membranes. Features an insulated drain body. Supplied with a leaf strainer or grate and a construction protection cover.
Technical specifications
- Drainage system: Gravity drainage
- Outlet orientation: Horizontal
- Available outlets: DN75/DN110
- Waterproofing connection: Stainless Steel Clamping Ring
- Manufacturer: HL Hutterer & Lechner, Austria
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL64 | DN75/DN110 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
