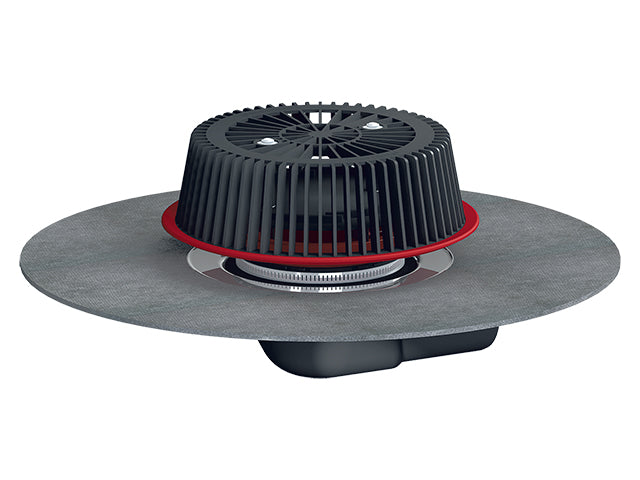

Horizontal Emergency Roof Drain with Bitumen Membrane – PowerSafe
Horizontal Emergency Roof Drain with Bitumen Membrane – PowerSafe
Horizontal Emergency Roof Drain with Bitumen Membrane – PowerSafe is intended for secondary emergency drainage of flat roofs. Its horizontal outlet, insulated polypropylene (PP) body and height-adjustable overflow inlet allow controlled discharge when emergency drainage is required. The drain incorporates a factory-attached bituminous waterproofing membrane.
PowerSafe configuration with a safety inlet attachment for emergency overflow drainage.
Technical specifications
- HL model: HL64HPowerSafe
- Application: Emergency roof drainage
- Outlet orientation: horizontal
- Outlet sizes: DN75
- Body material: Polypropylene (PP)
- Waterproofing connection: factory-attached bituminous waterproofing membrane
- Installation height: 93 mm
- Inlet edge: Height-adjustable
- Leaf catcher: Dome strainer, approximately 262 mm diameter
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL64HPowerSafe | DN75 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
