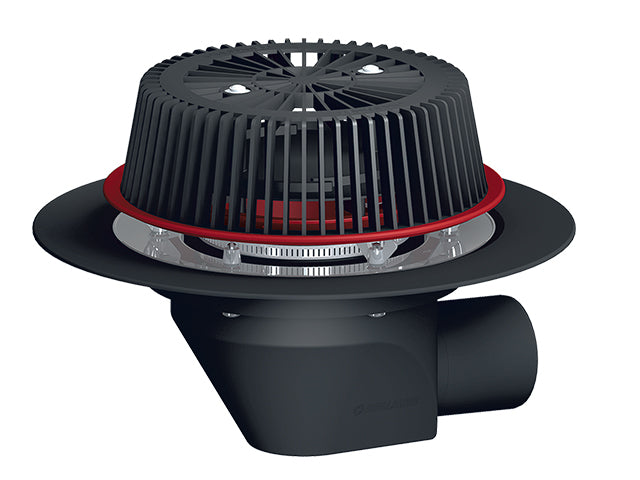

Horizontal Emergency Roof Drain with Clamping Flange
Horizontal Emergency Roof Drain with Clamping Flange
Horizontal Emergency Roof Drain with Clamping Flange is intended for secondary emergency drainage of flat roofs. Its horizontal outlet, insulated polypropylene (PP) body and height-adjustable overflow inlet allow controlled discharge when emergency drainage is required. The drain incorporates a stainless-steel clamping ring for connection to a compatible waterproofing membrane.
Technical specifications
- HL model: HL64Safe
- Application: Emergency roof drainage
- Outlet orientation: horizontal
- Outlet sizes: DN75/DN110
- Body material: Polypropylene (PP)
- Waterproofing connection: stainless-steel clamping ring for connection to a compatible waterproofing membrane
- Installation height: 150 mm
- Inlet edge: Height-adjustable
- Leaf catcher: Dome strainer, approximately 262 mm diameter
- Inlet edge adjustment: 28–68 mm
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL64Safe | DN75/DN110 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
