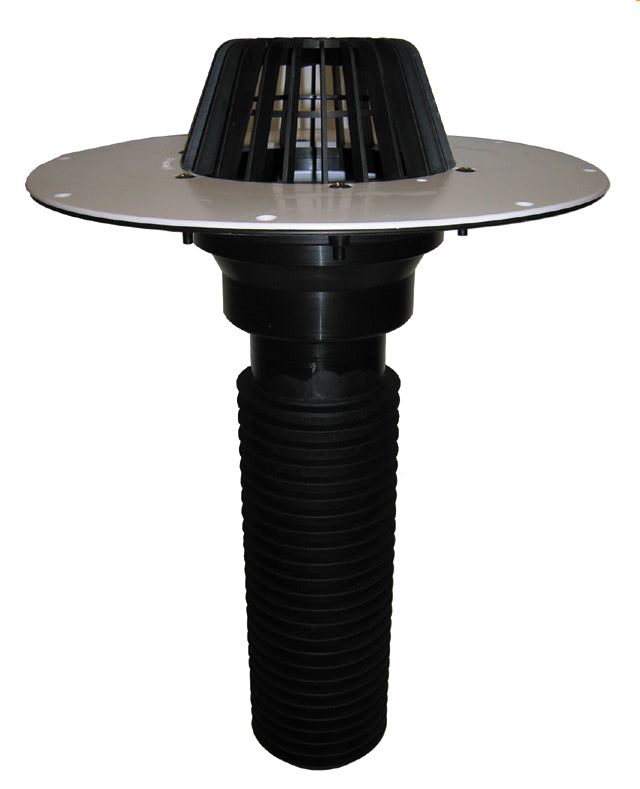

Vertical Roof Renovation Drain with PVC Collar
Vertical Roof Renovation Drain with PVC Collar
Vertical Roof Renovation Drain with PVC Collar is designed for gravity drainage of flat roofs, with a vertical outlet and PVC flange/collar for direct welding to compatible PVC roof membranes. Designed for roof renovation, the outlet is inserted into the existing drain and its integrated sealing ribs secure the connection without separate gasket installation. Supplied with a leaf strainer or grate and a construction protection cover.
Technical specifications
- Drainage system: Gravity drainage
- Outlet orientation: Vertical
- Available outlets: DN110, DN125, DN160, DN75
- Waterproofing connection: PVC Collar
- Manufacturer: HL Hutterer & Lechner, Austria
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL69P/1 | DN110 | Official specs & drawing downloads | Technical drawing PDF |
| HL69P/2 | DN125 | Official specs & drawing downloads |
| HL69P/5 | DN160 | Official specs & drawing downloads |
| HL69P/7 | DN75 | Official specs & drawing downloads |
Refer to the linked HL product pages for model-specific dimensions, rated flow capacities, and PDF technical drawings.
