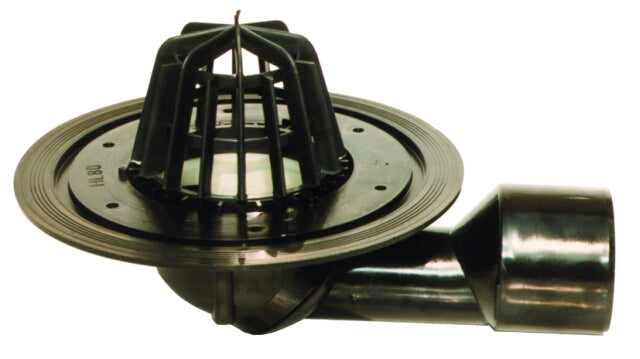

Adjustable Ball-Joint Roof Drain with Stainless Steel Clamping Ring
Adjustable Ball-Joint Roof Drain with Stainless Steel Clamping Ring
Adjustable Ball-Joint Roof Drain with Stainless Steel Clamping Ring is designed for gravity drainage of flat roofs, with a adjustable ball-joint outlet and flange with a stainless steel clamping ring for securing compatible waterproofing membranes. The adjustable ball-joint outlet can be positioned for vertical or horizontal drainage. Supplied with a leaf strainer or grate and a construction protection cover.
Technical specifications
- Drainage system: Gravity drainage
- Outlet orientation: Adjustable Ball-Joint
- Available outlets: DN50/DN75
- Waterproofing connection: Stainless Steel Clamping Ring
Models and official HL technical drawings
| Article code | Outlet | HL specification and drawing |
|---|---|---|
| HL80.3 | DN50/DN75 | Official specs & drawing downloads | Technical drawing PDF |
Refer to the linked HL product pages for model-specific dimensions, flow rate capacities, and PDF technical drawings.
